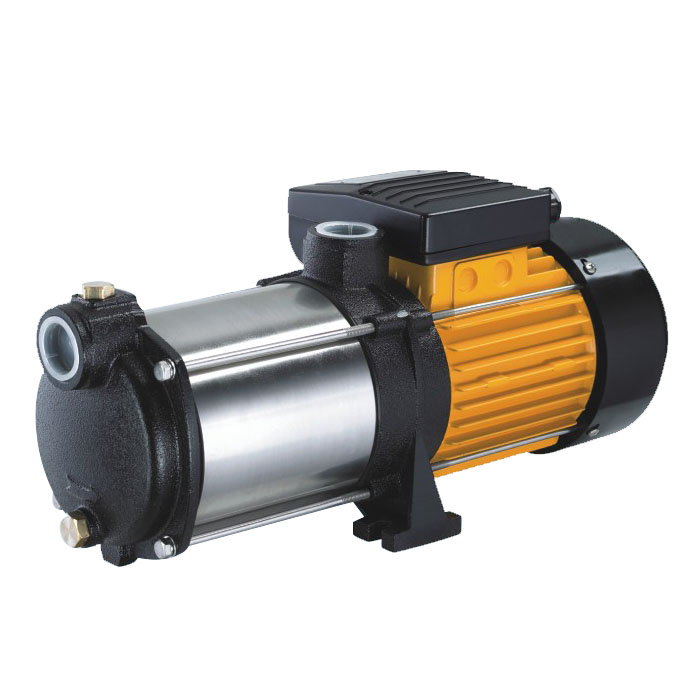

Self-priming Multi-stage Pump

Application

Suitable for use with clean water even where air is present and with liquids that are not chemically agreessive towards the material from the pump is made.The pumps are designed to pump water even in cases where air is present. As a result of their quietness, reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of wter in combination with pressure sets, and in rain water recovery and irrigation systems, etc. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pump

Cast iron and stainless steelpump body
Cast iron pump support
Aluminum motor housing
PPO impeller
AISI420 SS shaft
Ceramic-graphite mechanical seal
Total suction lift up to 8m

Two-pole induction motor
Built-in thermal protected for single phase motor
Insulation class: B
Protection class: IP44
Max.ambient temperature: +40℃

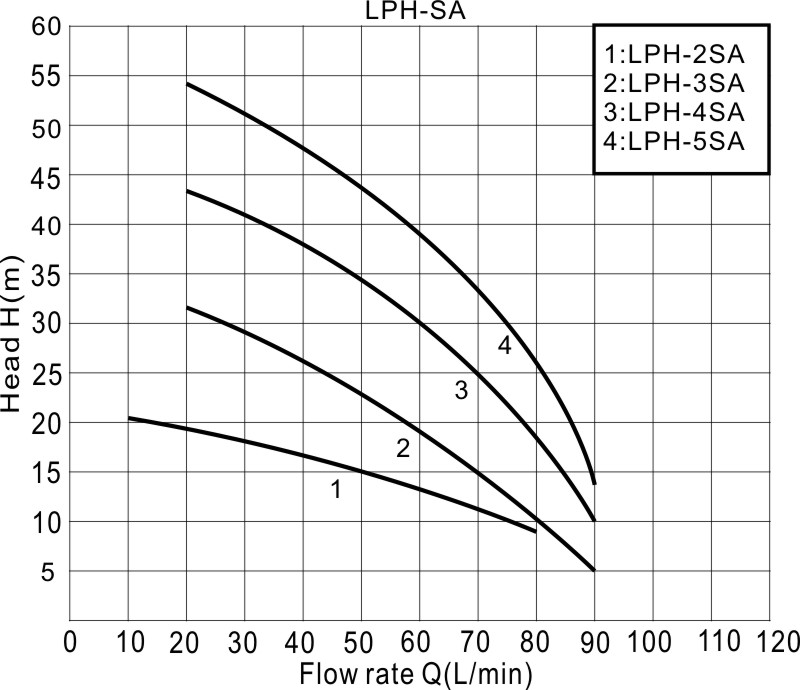

MODEL POWER INLET/OUTLET Q(㎥/h) 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6 G.W. Carton size(mm)
KW HP Q(L/min) 0 10 20 30 40 50 60 70 80 90 100 KG
LPH-2SA 0.37 0.5 1" , 1" H 22 21 20 19 18 16.5 14 11 8 9 390 X 200 X 205
LPH-3SA 0.55 0.75 1" , 1" 33 32 30 28 26 23.5 20 16 11 5 10 415 X 200 X 205
LPH-4SA 0.75 1 1" , 1" 44 43 40.5 38.5 36 32 27 22 16 10 11 440 X 200 X 205
LPH-5SA 0.9 1.2 1" , 1" 55 54 52 50 47 43 37 30 22 13 12 465 X 200 X 205
