Your Location: Home > Products > Submersible Borehole PumpsProname:4BP6-T

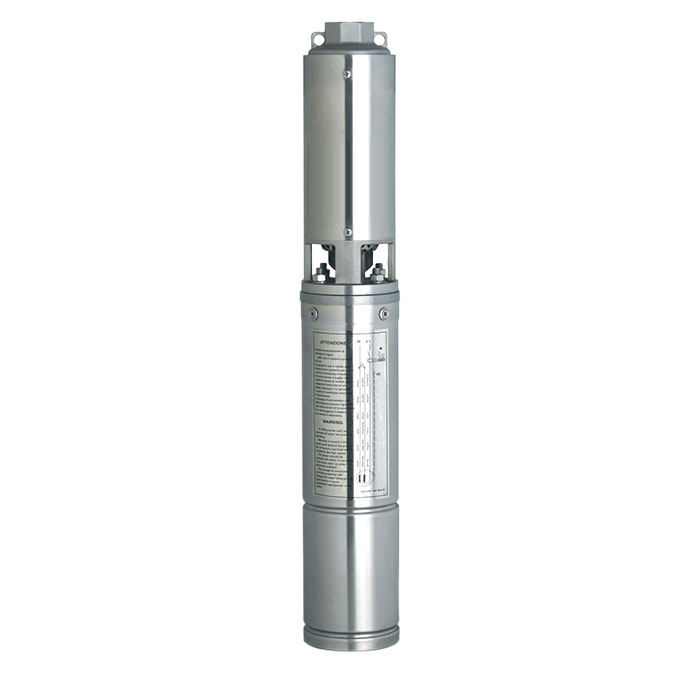

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

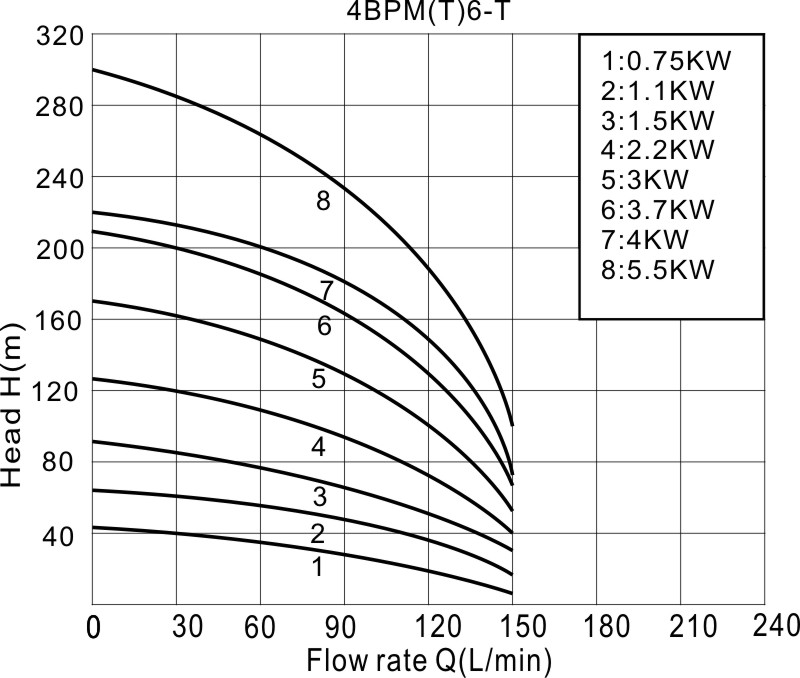

MODEL		POWER		Q(㎥/h）	0	1.8	2.1	2.4	2.7	3	3.6	4.2	4.8	5.4	6	7.2	8.4	9.6	10.8	12	13
220V/240V	380V/415V	KW	HP	Q(L/min）	0	30	35	40	45	50	60	70	80	90	100	120	140	160	180	200	220
4BPM6/7-T	4BPT6/7-T	0.75	1	H(m)	42					36	34	32	30	28	25	19	11
4BPM6/10-T	4BPT6/10-T	1.1	1.5		62					53	51	48	45	41	38	29	18
4BPM6/14-T	4BPT6/14-T	1.5	2		90					77	74	71	68	63	59	46	28
4BPM6/20-T	4BPT6/20-T	2.2	3		125					107	102	97	92	86	80	62	40
	4BPT6/27-T	3	4		169					145	139	131	123	115	107	84	55
	4BPT6/34-T	3.7	5		208					178	170	162	153	143	132	103	66
	4BPT6/36-T	4	5.5		221					190	181	173	164	154	143	112	72
	4BPT6/49-T	5.5	7.5		302					257	246	234	222	209	154	151	96
