Your Location: Home > Products > Submersible Borehole PumpsProname:4BP3-P

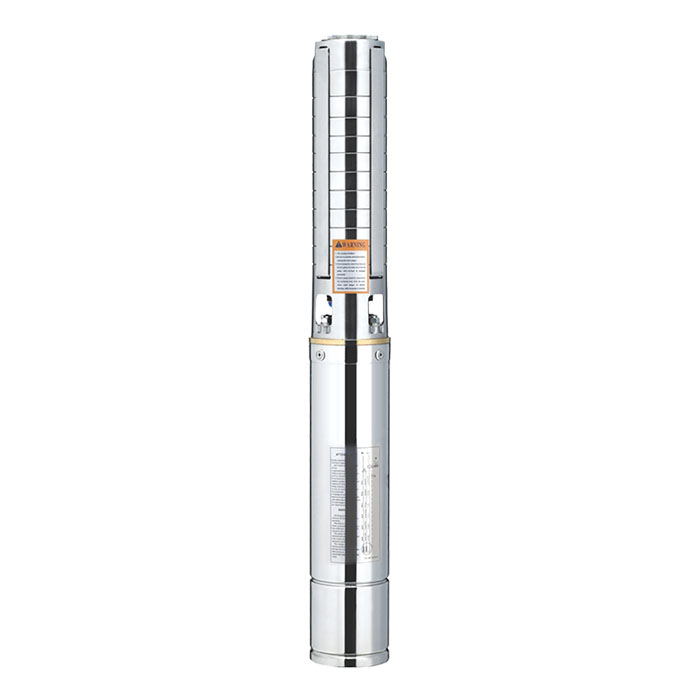

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

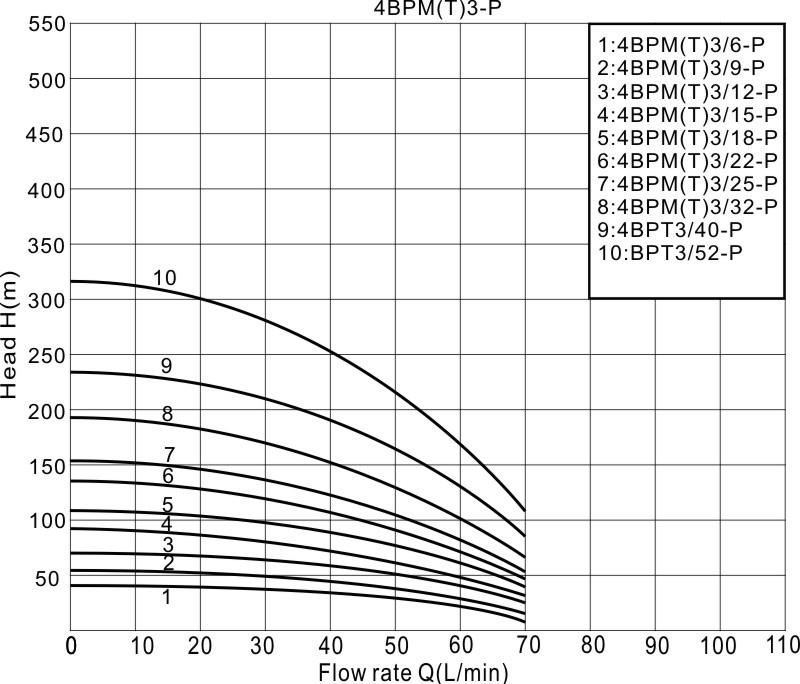

MODEL		POWER		Q(㎥/h）	0	0.6	1.2	1.8	2.4	3	3.6	4.2
220V/240V	380V/415V	KW	HP	Q(L/min）	0	10	20	30	40	50	60	70
4BPM3/6-P	4BPT3/6-P	0.37	0.5	H(m)	36	35	33	31	29	26	21	13
4BPM3/9-P	4BPT3/9-P	0.55	0.75		55	52	50	47	44	39	31	19
4BPM3/12-P	4BPT3/12-P	0.75	1		73	70	67	63	58	51	41	25
4BPM3/15-P	4BPT3/15-P	1.1	1.5		91	87	83	78	73	64	52	32
4BPM3/18-P	4BPT3/18-P	1.1	1.5		109	105	100	94	87	77	62	38
4BPM3/22-P	4BPT3/22-P	1.5	2		134	128	122	115	107	94	76	47
4BPM3/25-P	4BPT3/25-P	1.5	2		152	146	139	131	121	107	86	53
4BPM3/32-P	4BPT3/32-P	2.2	3		194	186	178	167	155	137	110	68
	4BPT3/40-P	3	4		243	233	222	209	194	172	138	85
	4BPT3/52-P	4	5.5		316	303	289	272	252	223	179	110
