Your Location: Home > Products > Submersible Borehole PumpsProname:4BP4-R

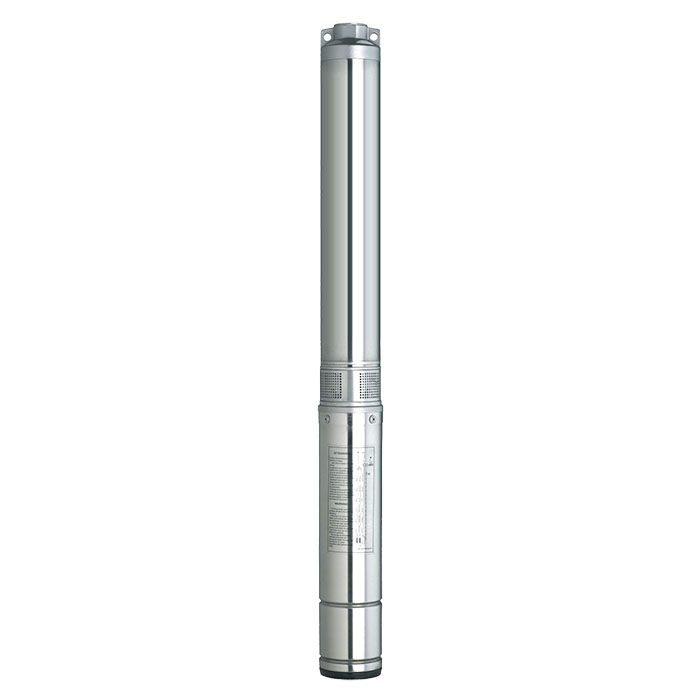

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

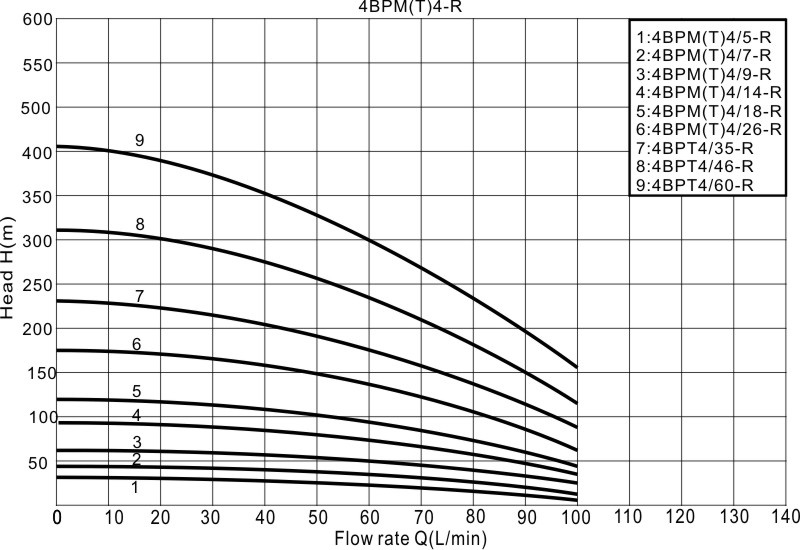

MODEL		POWER		Q(㎥/h）	0	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
220V/240V	380V/415V	KW	HP	Q(L/min)	0	20	30	40	50	60	70	80	90	100
4BPM4/5-R	4BPTM4/5-R	0.37	0.5	H(m)	33	32	30	29	27	25	23	20	16	12
4BPM4/7-R	4BPT4/7-R	0.55	0.75		45	44	42	40	38	35	32	28	23	17
4BPM4/9-R	4BPT4/9-R	0.75	1		60	56	55	52	49	45	40	35	29	23
4BPM4/14-R	4BPT4/14-R	1.1	1.5		92	88	85	81	76	70	63	55	45	35
4BPM4/18-R	4BPT4/18-R	1.5	2		120	112	109	104	98	90	81	70	58	45
4BPM4/26-R	4BPT4/26-R	2.2	3		170	162	157	150	141	130	116	101	84	63
	4BPT4/35-R	3	4		230	220	211	202	190	175	157	137	113	85
	4BPT4/46-R	4	5.5		308	293	280	269	249	230	205	181	151	117
	4BPT4/60-R	5.5	7.5		405	385	370	350	325	300	270	235	195	155
