Your Location: Home > Products > Garden PumpsProname:GPDS-XXXD

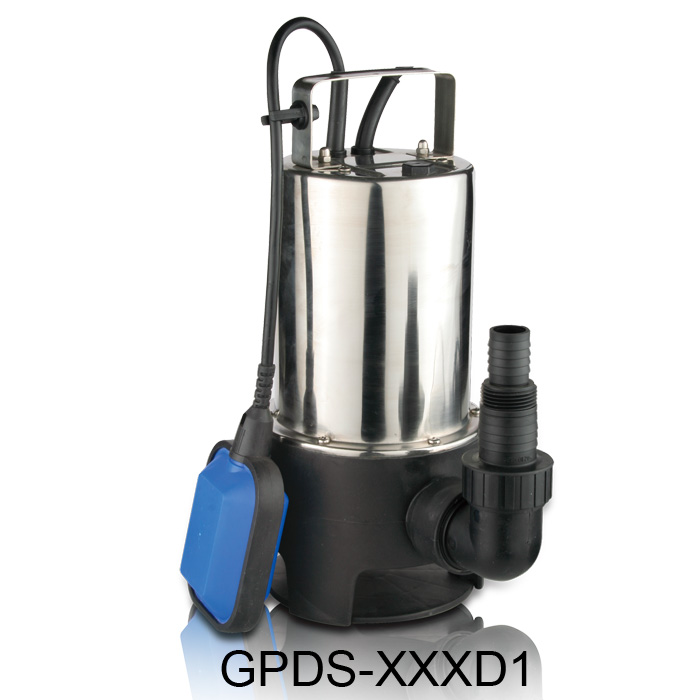

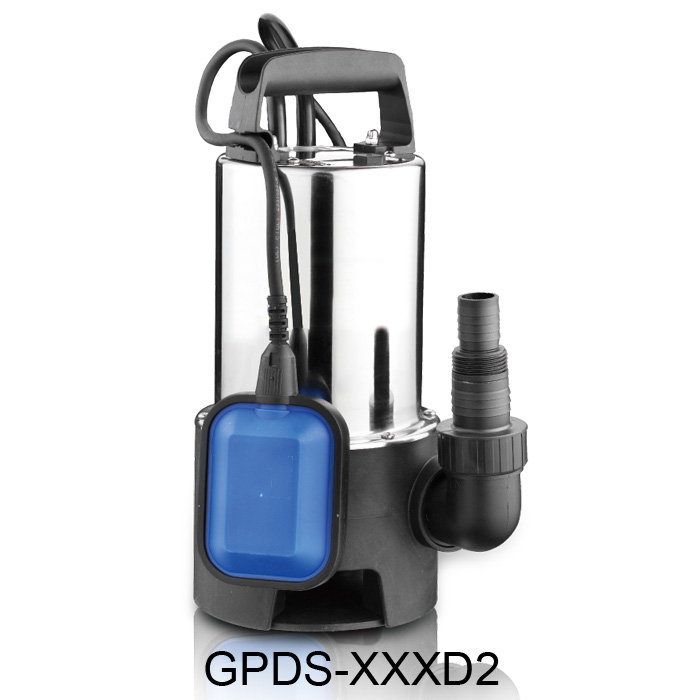

Dirty Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system
Compare with normal floating switch, it can be used in much smaller space and will not be blocked
Stainless steel motor shaft
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 25mm

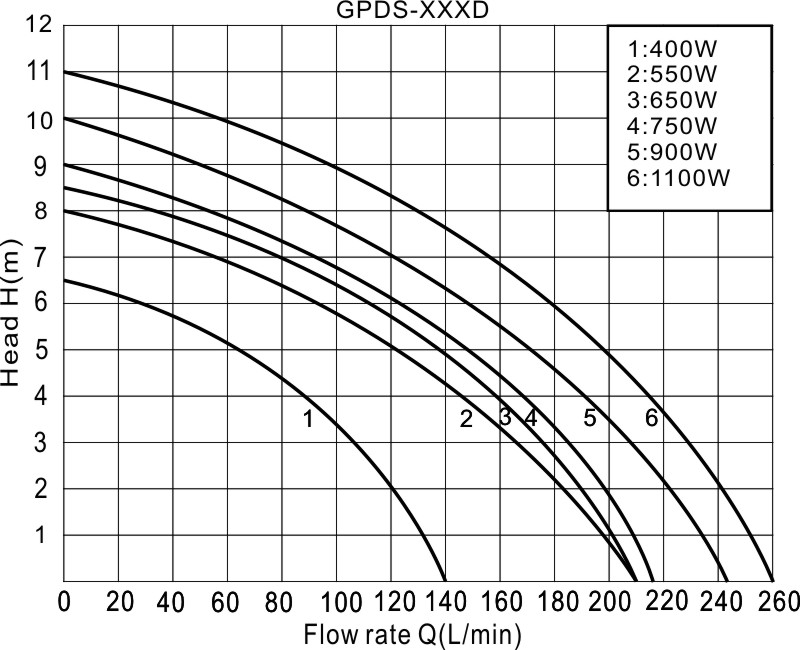

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPDS-400D1/D2	400	140	6.5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×39	19.2/21.3	2000
GPDS-550D1/D2	550	208	8	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×39	21.3/23.4	200
GPDS-650D1/D2	650	208	8.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×39	21.4/23.5	200
GPDS-750D1/D2	750	216	9	1", 1¼", 1½"	H07RN-F 3G1.0MM²×10m	46×34×39	22.2/24.4	1960
GPDS-900D1/D2	900	242	10	1", 1¼", 1½"	H07RN-F 3G1.0MM²×10m	46×34×39	23.6/25.8	1960
GPDS-1100D1/D2	1100	260	11	1", 1¼", 1½"	H07RN-F 3G1.0MM²×10m	46×34×39	25.1/27.3	1960
