Your Location: Home > Products > Multistage submersible pumpsProname:5SCM
I want to enquire

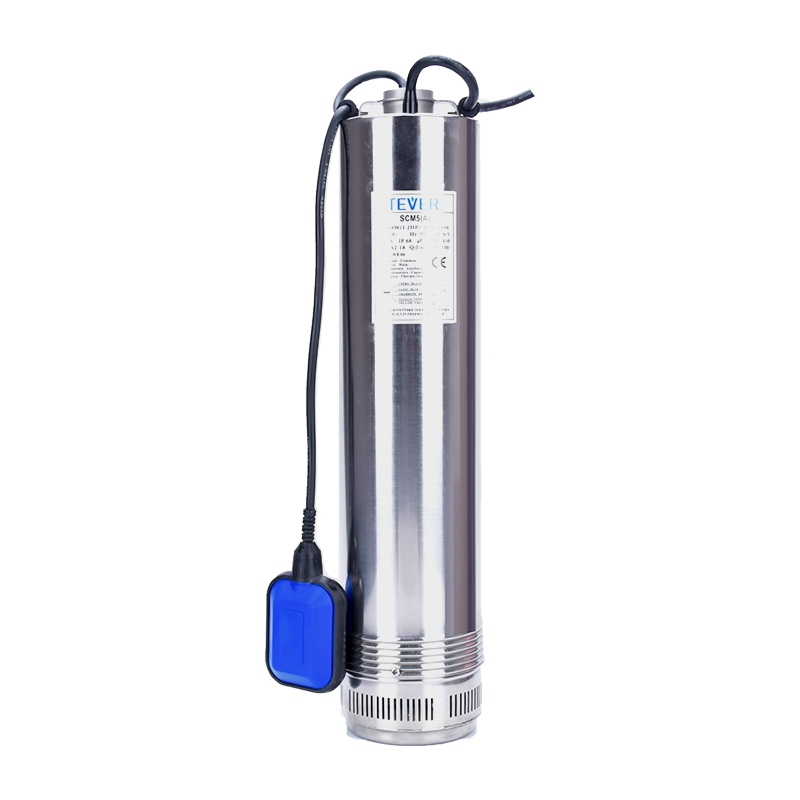

5 inch stainless steel submersible pump

Applications

For water supply from wells or reservoirs
For domestic use, for civil and industrial application
For garden use and irragation

Operating Condictions

Max. fluid temperature up to +35℃
Max. sand content: 0.15%
Min. well diameter: Ø130mm
Max. immersion depth: 20m

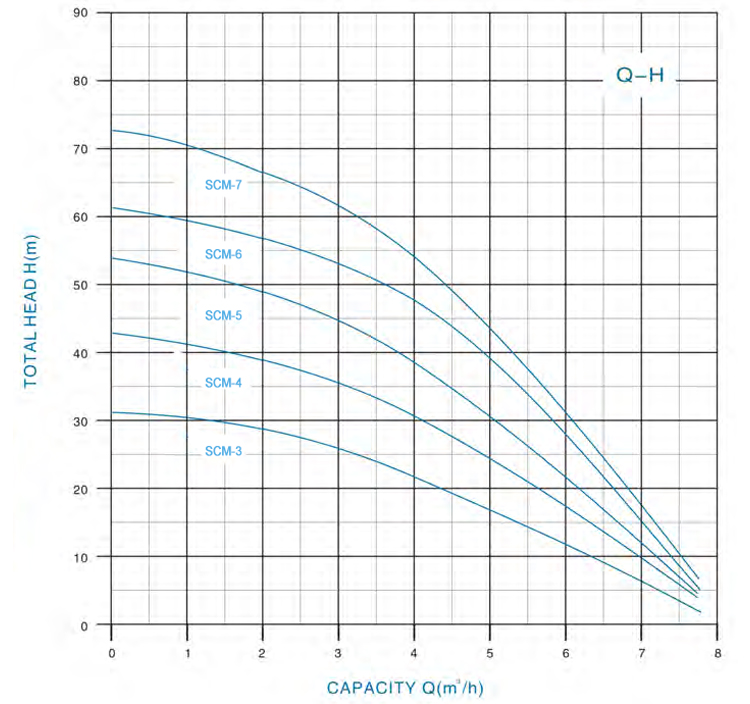

Model Impeller Power(kW) Max.flow(m3/h) Max.head(m) Discharge
SCM-3 3 0.55 7.8 32 G1-1/4"
SCM-4 4 0.75 7.8 43 G1-1/4"
SCM-5 5 0.9 7.8 54 G1-1/4"
SCM-6 6 1.1 7.8 65 G1-1/4"
SCM-7 7 1.5 7.8 75 G1-1/4"

Pervious: 4SCM        Next: no products
