economical booster pump

Application

It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment, etc.

Pump

Cast iron pump body and support under special anti-rust treatment.
Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time.
Brass impeller with evenly arranged radial vanes.
AISI 304 shaft.
Max.liquid temperature: 60℃.
Max.suction: 8-9m.

Motor

C&U bearing
Motor with cooper winding
Built-in thermal protected for single phase motor
Insulation class: F
Protection class: IPX4
Max.ambient temperature: +40℃

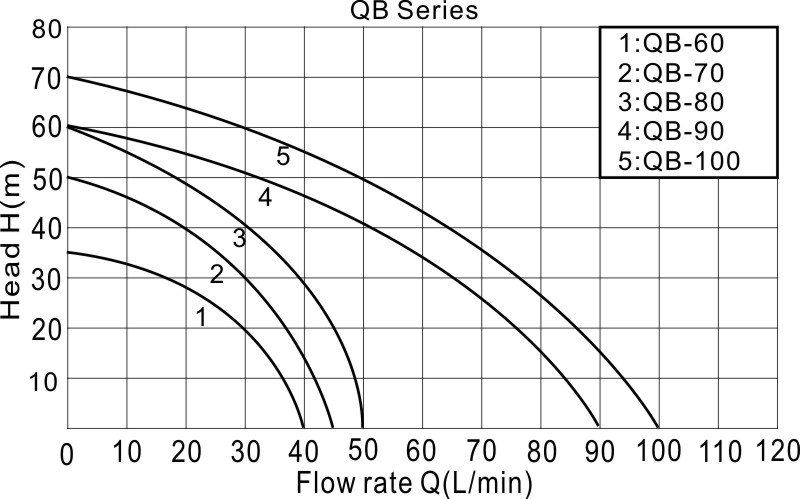

MODEL POWER Inlet/Outlet MAX. FLOW
(L/min)
MAX.HEAD
(m)
MAX.SUCT
(m)
G.W
(kg)
QUANTITY
(PCS/TEU)
KW HP A
QB-60(A) 0.37 0.5 2.5 1" , 1" 40 35 8 4 3700
QB-70(A) 0.55 0.75 3.8 1" , 1" 45 50 8 7 2000
QB-80(A) 0.75 1 5.5 1" , 1" 50 60 8 7.5 2000
QB-90 1.1 1.5 7.2 1½" , 1½" 90 60 9 16.5 1800
QB-100 1.5 2 9.5 1½" , 1½" 100 70 9 17 1800
