Your Location: Home > Products > Submersible Borehole PumpsProname:3BP1.5-H
I want to enquire

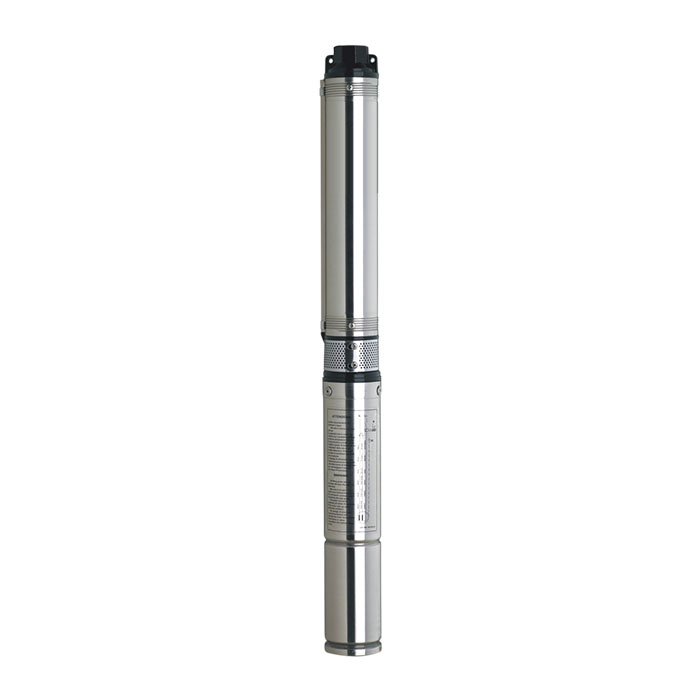

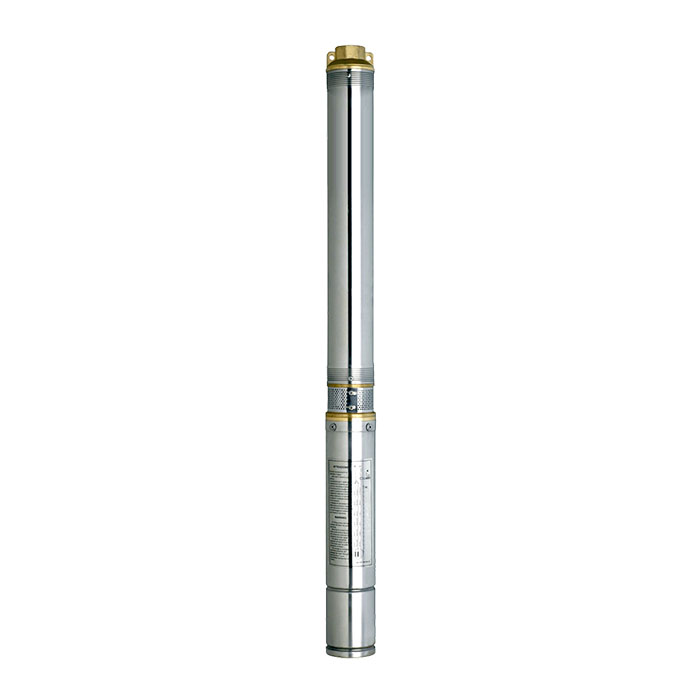

3" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 3"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

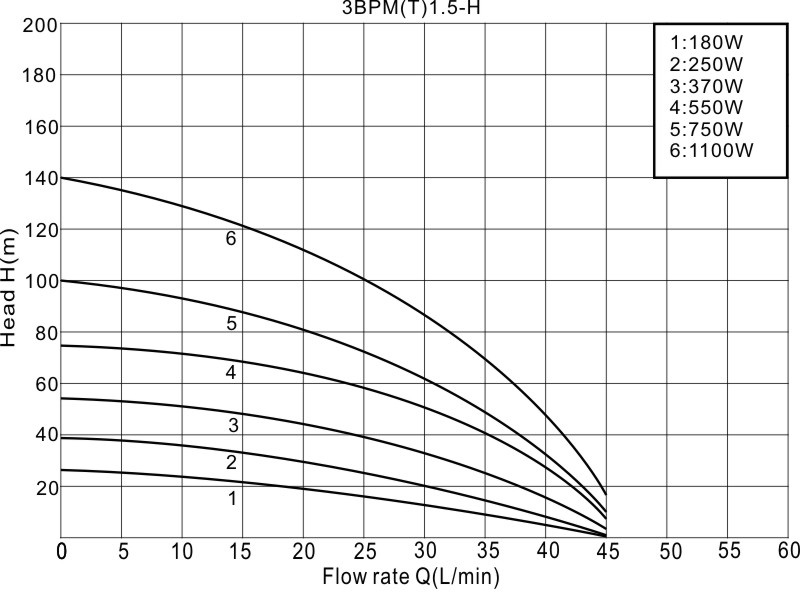

MODEL POWER Q(㎥/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7
220V/240V 380V/415V KW HP Q(L/min) 0 5 10 15 20 25 30 35 40 45
3BPM1.5/7-H 3BPT1.5/7-H 0.18 0.24 H(m) 27 26 25 23 21 18 15 11 7 3
3BPM1.5/10-H 3BPT1.5/10-H 0.25 0.33 38 37 36 33 30 25 22 16 8 4
3BPM1.5/14-H 3BPT1.5/14-H 0.37 0.5 53 52 51 46 42 35 29 22 11 7
3BPM1.5/20-H 3BPT1.5/20-H 0.55 0.75 75 74 73 66 60 50 43 32 16 8
3BPM1.5/27-H 3BPT1.5/27-H 0.75 1 101 100 99 89 81 68 56 43 21 11
3BPM1.5/37-H 3BPT1.5/37-H 1.1 1.5 139 137 135 122 111 93 78 59 30 15
