Your Location: Home > Products > Submersible Borehole PumpsProname:4BP2-H
I want to enquire

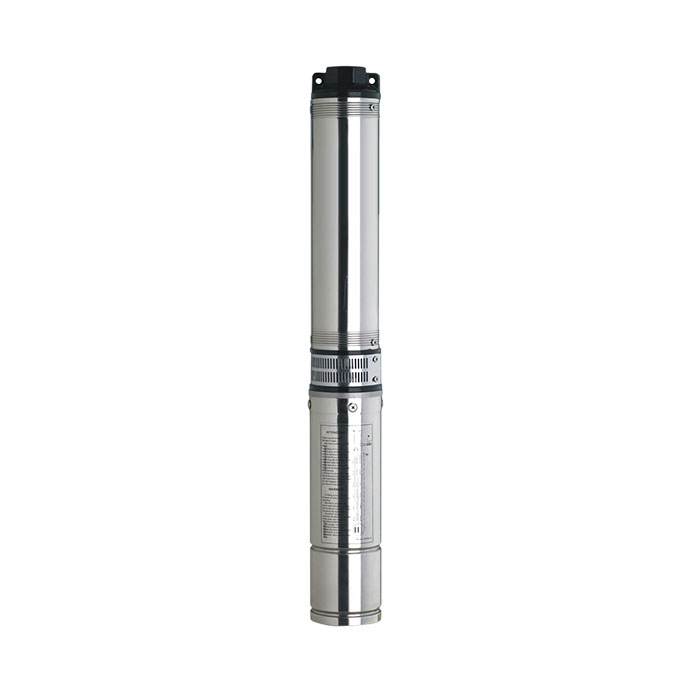

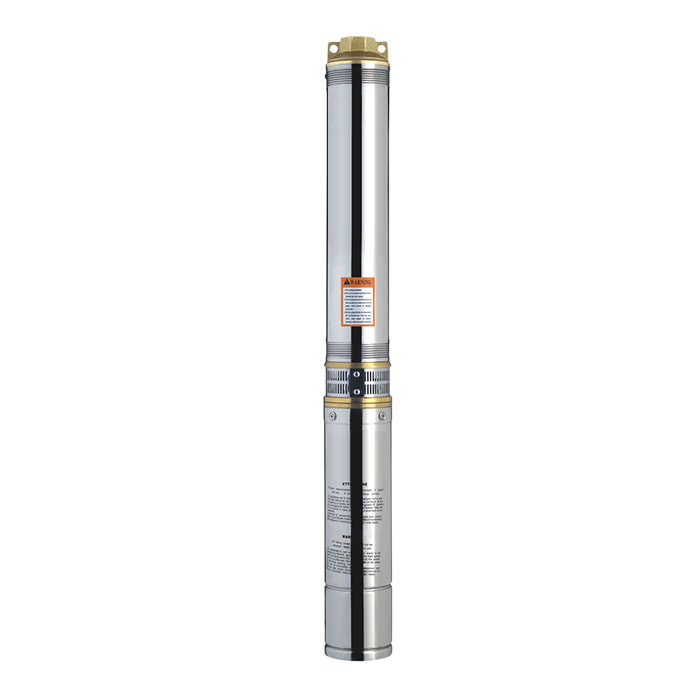

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

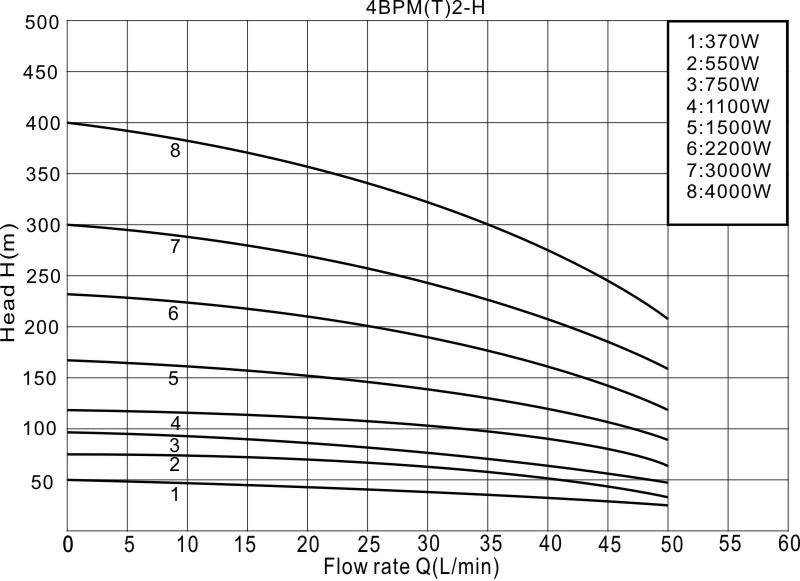

MODEL POWER Q(㎥/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3
220V/240V 380V/415V KW HP Q(L/min) 0 5 10 15 20 25 30 35 40 45 50
4BPM2/7-H 4BPT2/7-H 0.37 0.5 H(m) 49 48 47 46 45 43 41 39 37 33 26
4BPM2/10-H 4BPT2/10-H 0.55 0.75 70 69 67 66 65 62 59 56 52 48 37
4BPM2/13-H 4BPT2/13-H 0.75 1 91 90 88 86 84 80 77 72 68 62 48
4BPM2/17-H 4BPT2/17-H 1.1 1.5 119 117 115 113 110 105 100 95 89 81 63
4BPM2/23-H 4BPT2/23-H 1.5 2 161 158 156 152 149 142 136 128 120 110 85
4BPM2/32-H 4BPT2/32-H 2.2 3 224 220 217 212 207 197 189 178 167 153 118
4BPT2/43-H 3 4 301 296 292 285 278 265 254 240 225 206 158
4BPT2/56-H 4 5.5 392 385 380 371 362 345 331 312 290 268 206
