Your Location: Home > Products > Submersible Borehole PumpsProname:4BP2-T

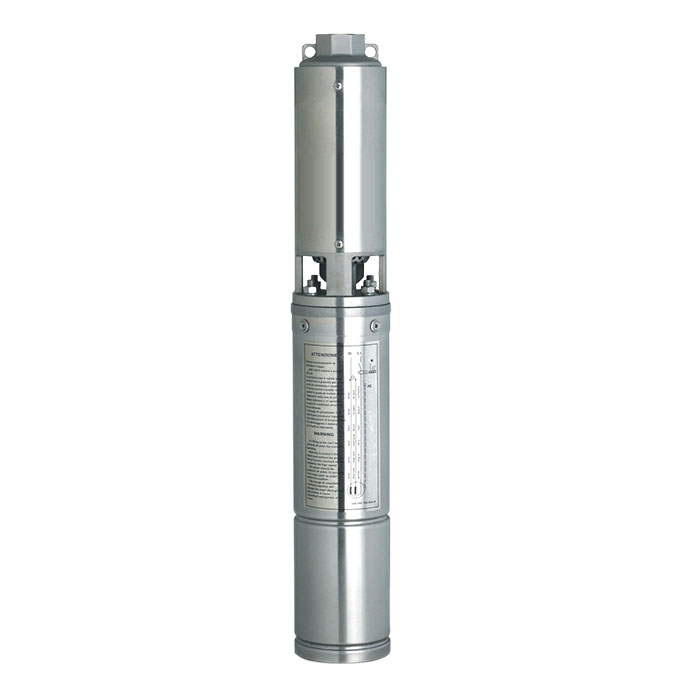

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

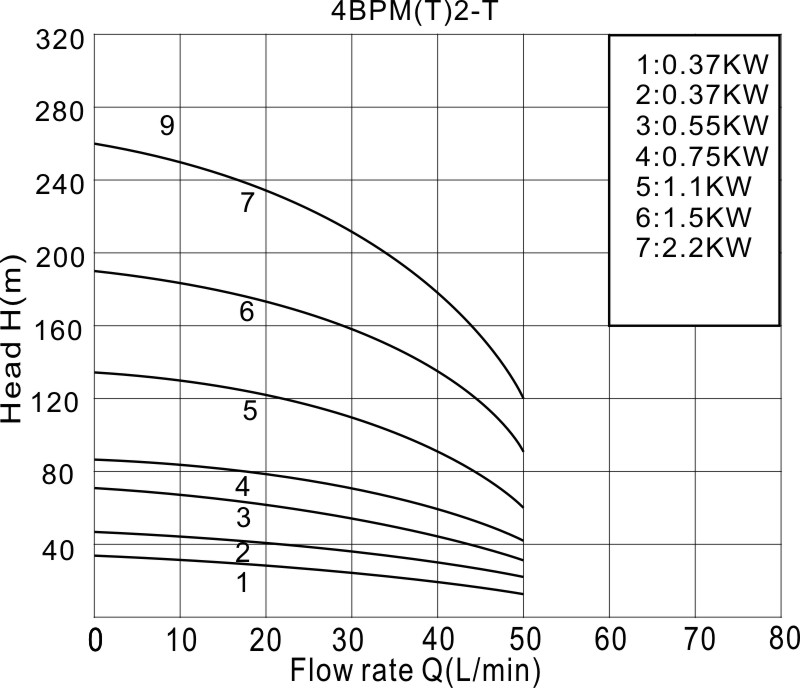

MODEL		POWER		Q(㎥/h）	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.6	4.2	4.8
220V/240V	380V/415V	KW	HP	Q(L/min）	0	5	10	15	20	25	30	35	40	45	50	60	70	80
4BPM2/5-T	4BPT2/5-T	0.37	0.5	H(m)	34			32	31	29	27	25	23	19	16
4BPM2/7-T	4BPT2/7-T	0.37	0.5		46			43	42	39	36	33	29	26	22
4BPM2/10-T	4BPT2/10-T	0.55	0.75		69			65	63	60	55	50	44	37	29
4BPM2/14-T	4BPT2/14-T	0.75	1		92			86	83	79	74	67	60	52	42
4BPM2/20-T	4BPT2/20-T	1.1	1.5		139			131	127	120	111	101	90	75	60
4BPM2/28-T	4BPT2/28-T	1.5	2		189			178	172	164	153	140	126	108	90
4BPM2/40-T	4BPT2/40-T	2.2	3		265			249	237	224	208	189	170	147	120
