Your Location: Home > Products > Submersible Borehole PumpsProname:4BP10-H

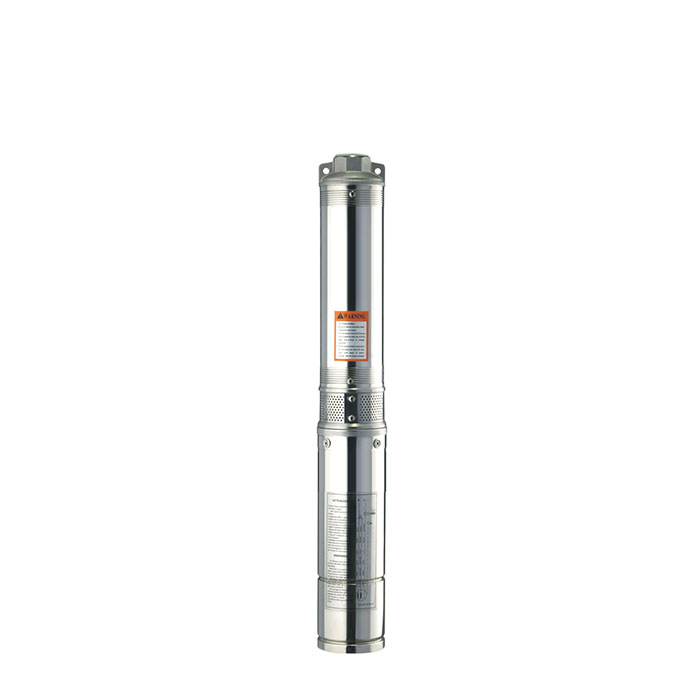

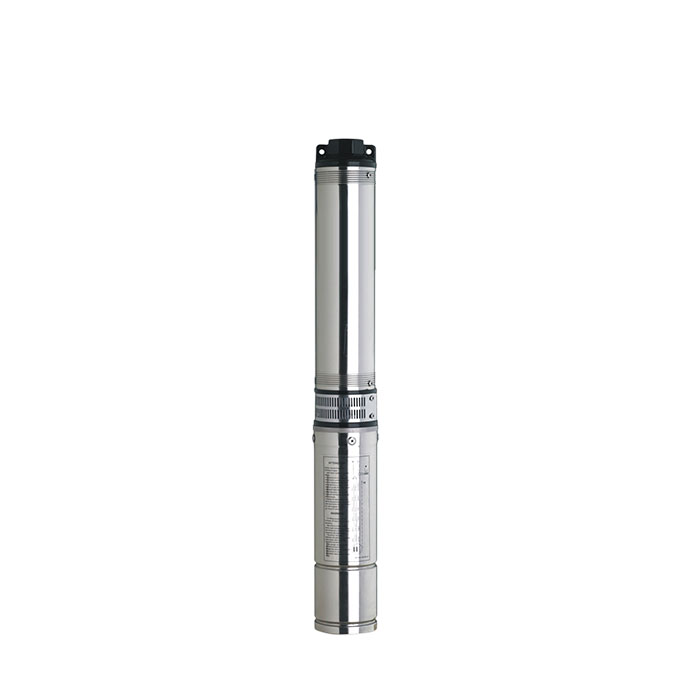

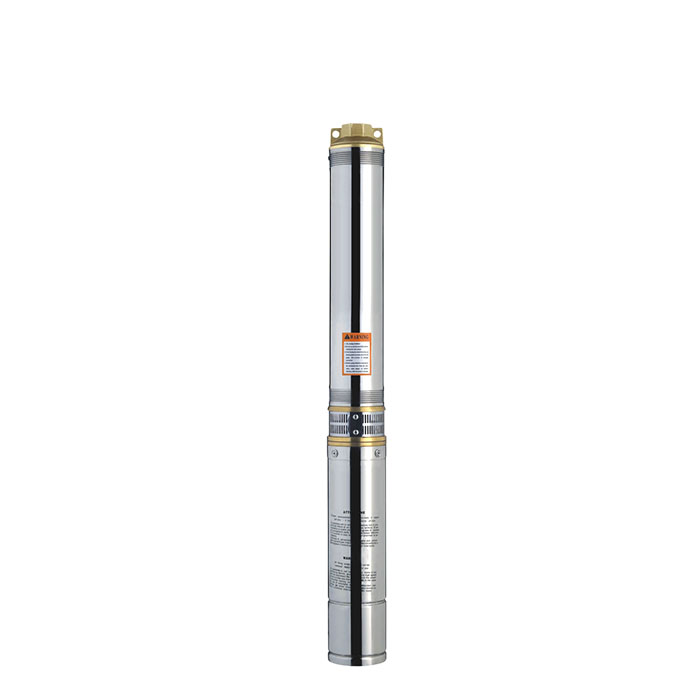

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

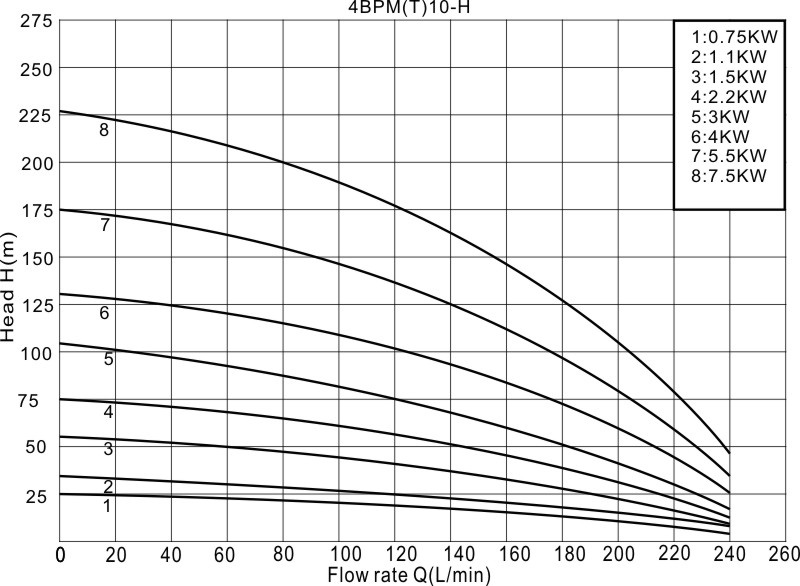

MODEL		POWER		Q(㎥/h）	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4
220V/240V	380V/415V	KW	HP	Q(L/min）	0	30	60	90	120	150	180	210	240
4BPM10/4-H	4BPT10/4-H	0.75	1	H(m)	25	24	23	21	19	17	13	9	5
4BPM10/6-H	4BPT10/6-H	1.1	1.5		38	36	34	32	29	26	19	14	8
4BPM10/9-H	4BPT10/9-H	1.5	2		57	54	51	47	43	39	29	21	11
4BPM10/12-H	4BPT10/12-H	2.2	3		76	72	68	63	57	52	38	28	15
	4BPT10/17-H	3	4		107	102	96	89	81	74	54	40	21
	4BPT10/21-H	4	5.5		133	126	119	110	100	91	91	49	26
	4BPT10/28-H	5.5	7.5		177	168	158	147	133	121	89	65	35
	4BPT10/36-H	7.5	10		228	216	203	189	171	156	114	84	45
