Your Location: Home > Products > Submersible Borehole PumpsProname:4BP-N
I want to enquire

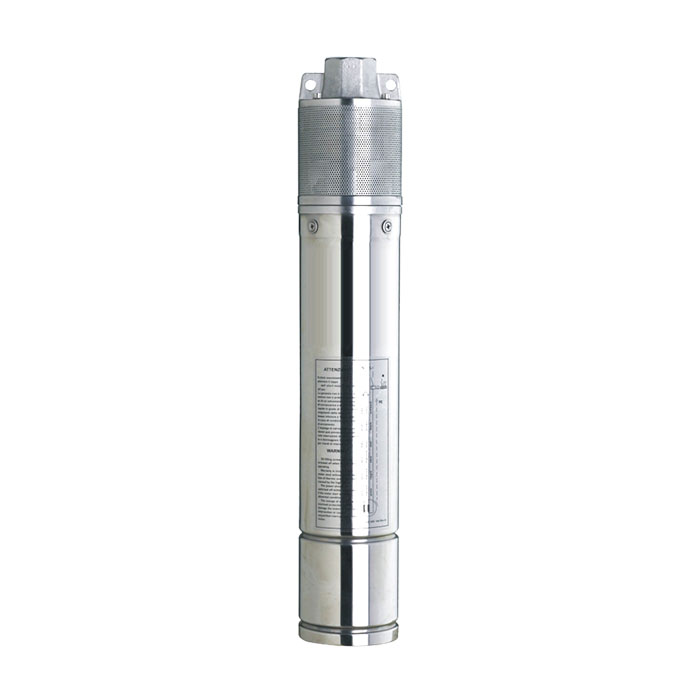

4" Submersible Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"
Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

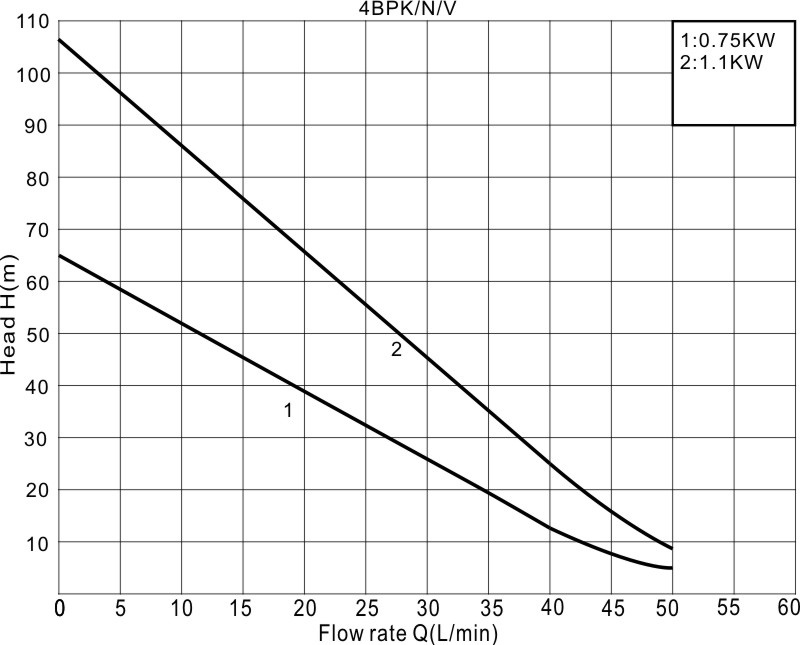

MODEL POWER Q(㎥/h） 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3
220V/240V 380V/415V KW HP Q(L/min) 0 5 10 15 20 25 30 35 40 45 50
4BPM100-N 4BPT100-N 0.75 1 H(m) 64 58 52 46 39 33 26 19 13 9 5
4BPM150-N 4BPT150-N 1.1 1.5 107 98 88 78 68 57 46 34 24 16 9

Pervious: 4BP-K       Next:4BP-V
