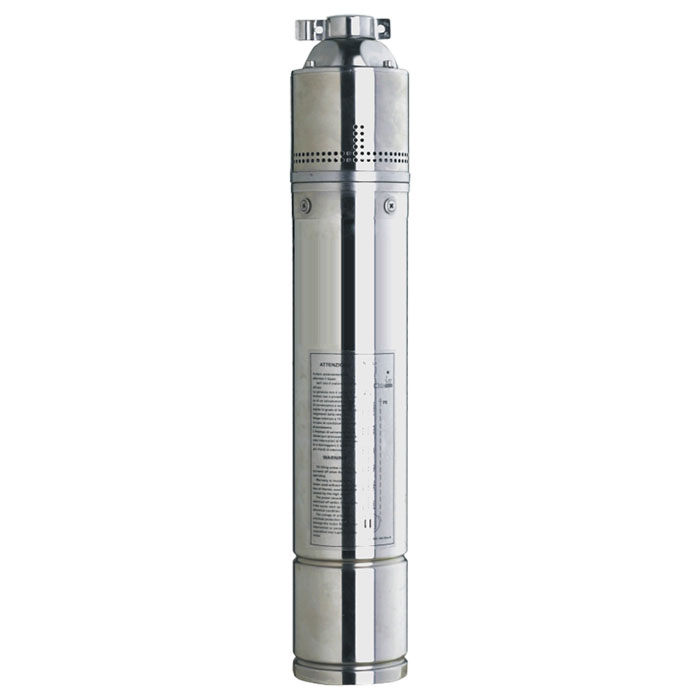

4" Submersible Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"
Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

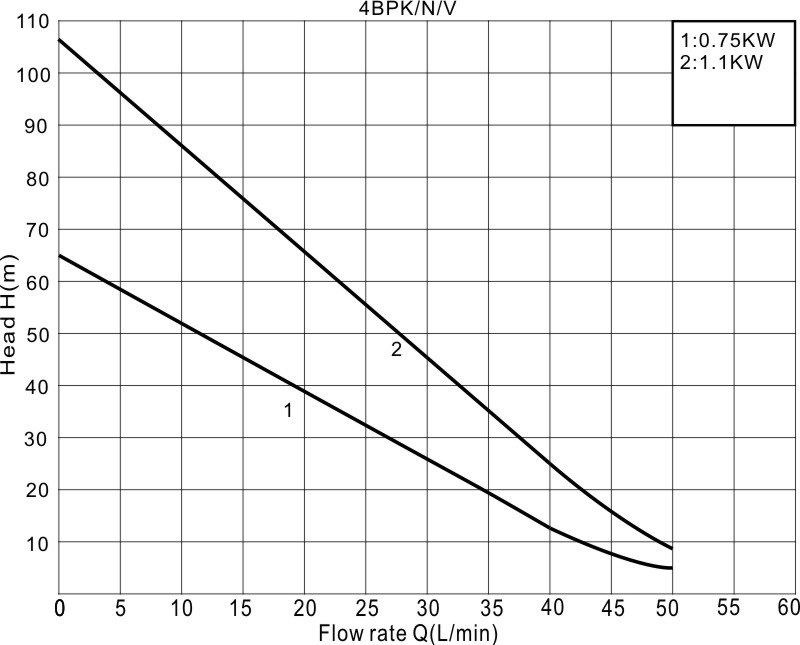

MODEL POWER Q(㎥/h） 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3
220V/240V 380V/415V KW HP Q(L/min) 0 5 10 15 20 25 30 35 40 45 50
4BPM100-V 4BPT100-V 0.75 1 H(m) 64 58 52 46 39 33 26 19 13 9 5
4BPM150-V 4BPT150-V 1.1 1.5 107 98 88 78 68 57 46 34 24 16 9
