Your Location: Home > Products > Garden PumpsProname:GPCP-XXXC

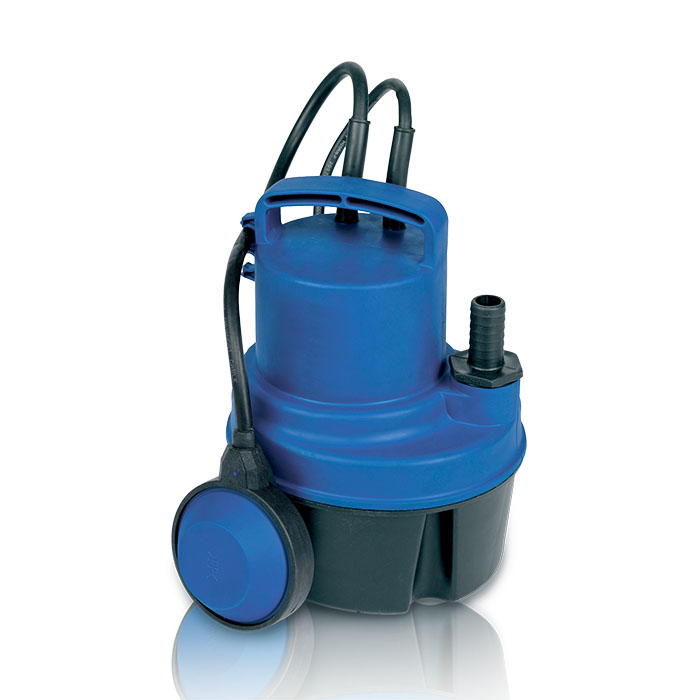

Clean Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system.
Compare with normal floating switch, it can be used in much smaller space and will not be blocked.
Stainless steel motor shaft.
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 5mm

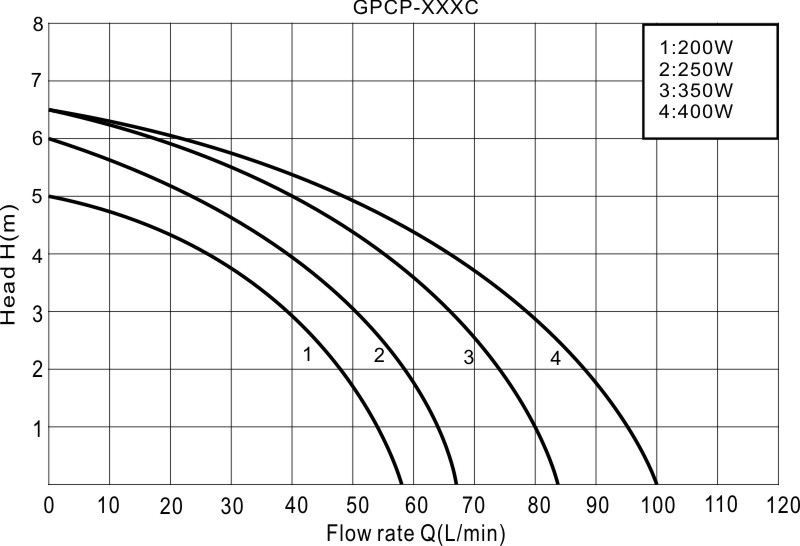

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (6 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPCP-200C	200	58	5	3/4", 1"	H05RN-F 3G0.75MM²×10m	51.5×34×33	20.1/22.5	3024
GPCP-250C	250	66	6	3/4", 1"	H05RN-F 3G0.75MM²×10m	51.5×34×33	20.2/22.6	3024
GPCP-350C	350	83	6.5	3/4", 1"	H05RN-F 3G0.75MM²×10m	51.5×34×33	22/24.2	3024
GPCP-400C	400	100	6.5	3/4", 1"	H05RN-F 3G0.75MM²×10m	51.5×34×33	22.3/24.7	3024
