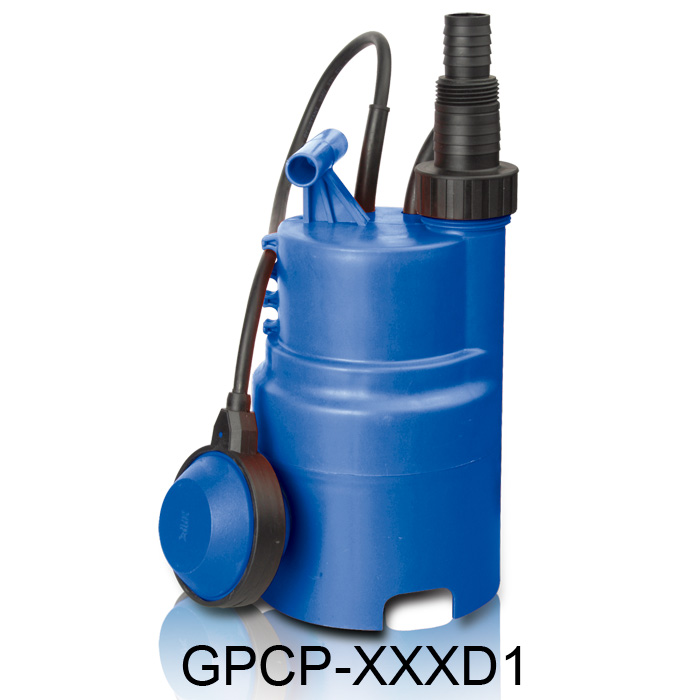

Your Location: Home > Products > Garden PumpsProname:GPCP-XXXD

Clean Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system.
Compare with normal floating switch, it can be used in much smaller space and will not be blocked.
Stainless steel motor shaft.
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 5mm

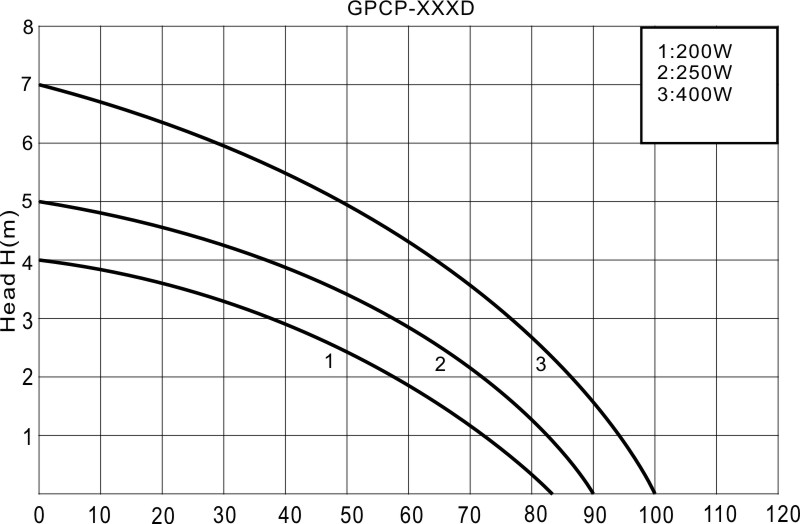

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (6 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPCP-200D1/D2	200	83	4	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	51×33×33	20.1/22.5	3180
GPCP-250D1/D2	250	90	5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	51×33×33	20.2/22.6	3180
GPCP-400D1/D2	400	100	7	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	51×33×33	22.3/24.7	3180
