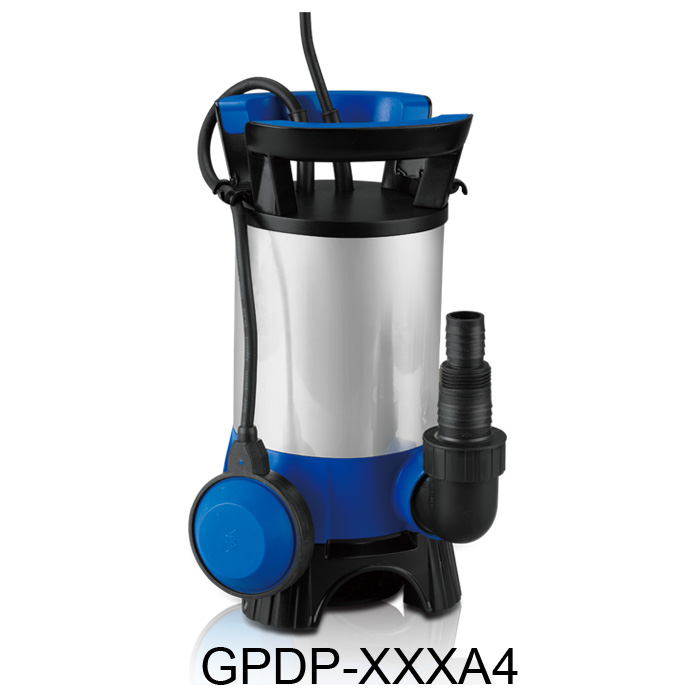

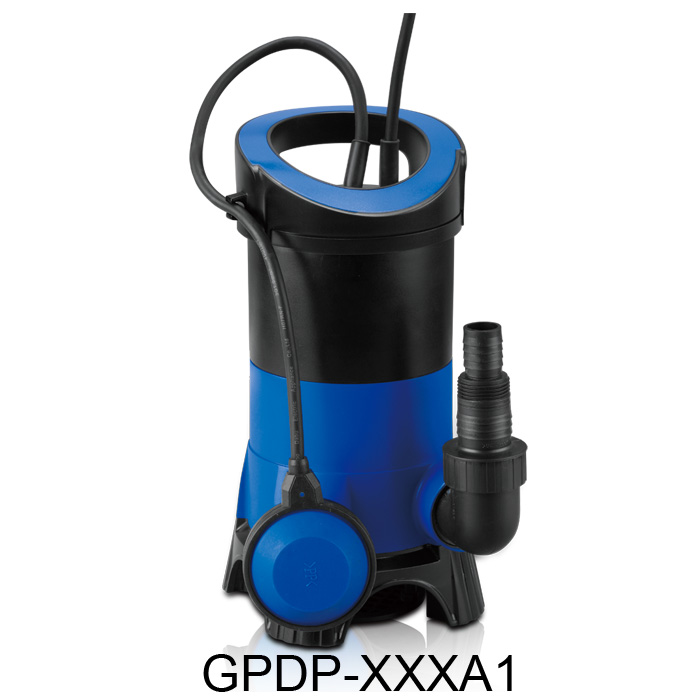

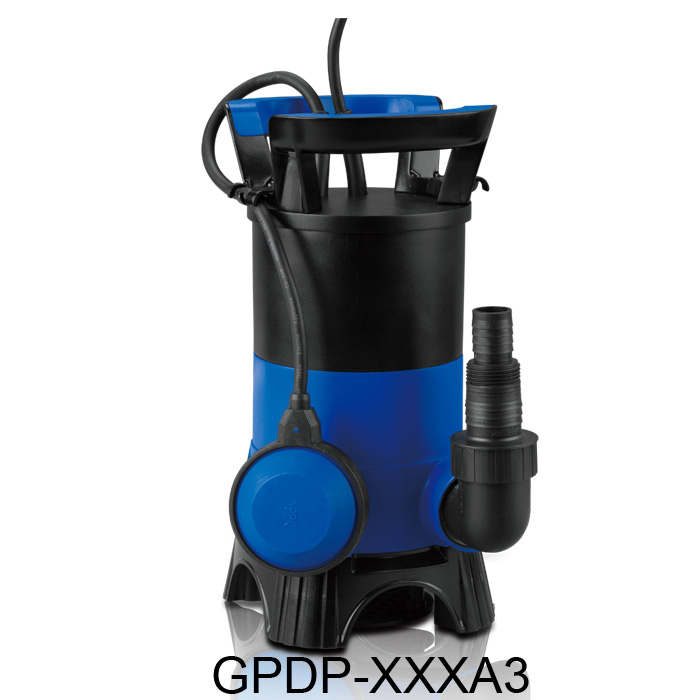

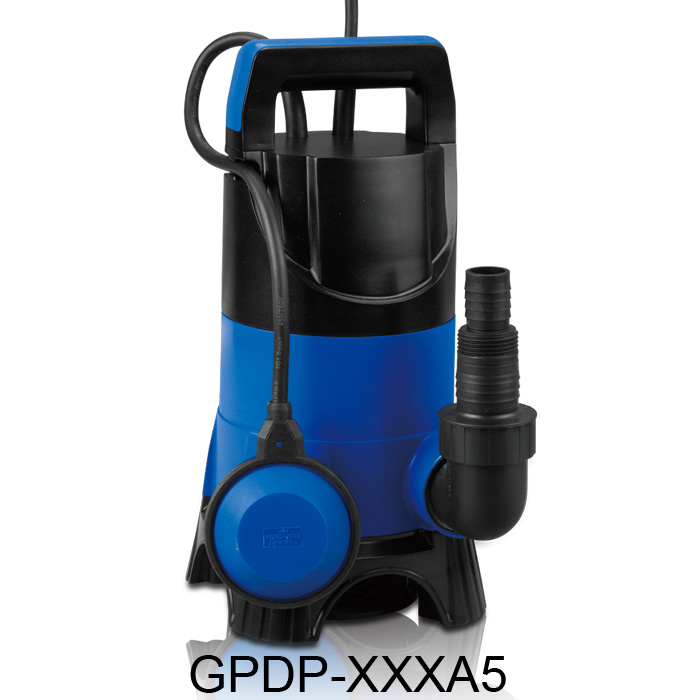

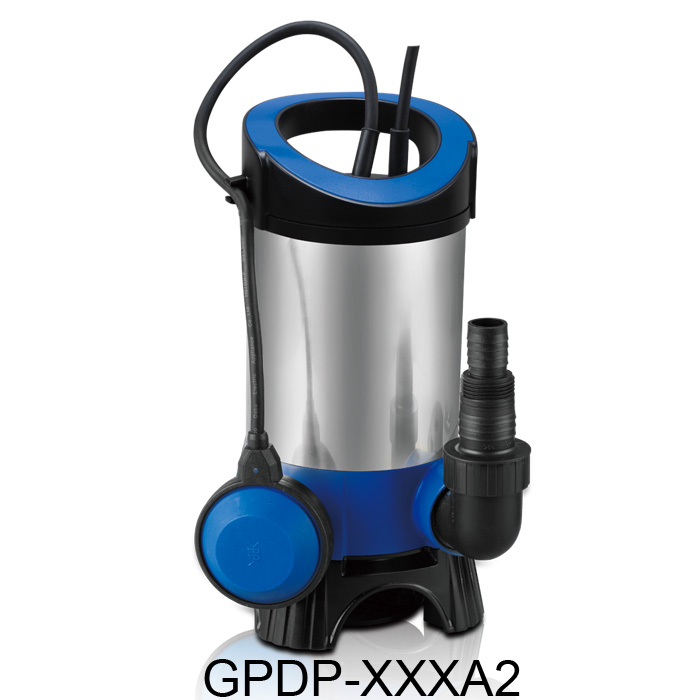

Your Location: Home > Products > Garden PumpsProname:GPDP-XXXA

Dirty Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system
Compare with normal floating switch, it can be used in much smaller space and will not be blocked
Stainless steel motor shaft
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 25mm

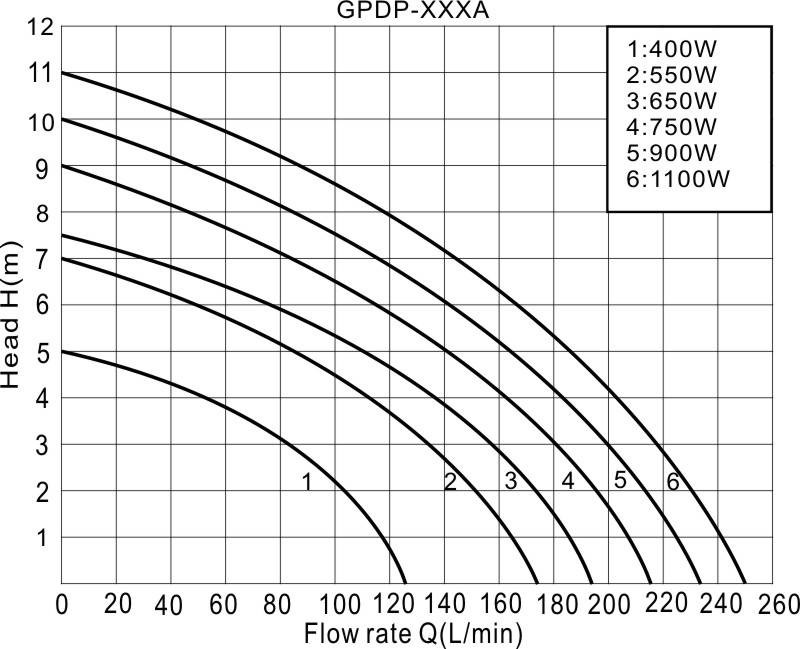

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/ TEU
GPDP-400A1(2/3/4/5)	400	125	5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×36	16.2/18.2	2040
GPDP-550A1(2/3/4/5)	550	175	7	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×36	20.3/22.3	2040
GPDP-650A1(2/3/4/5)	650	192	7.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×36	20.4/22.4	2040
GPDP-750A1(2/3/4/5)	750	216	9	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×38.5	20.6/22.8	1960
GPDP-900A1(2/3/4/5)	900	233	10	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×38.5	21.8/24	1960
GPDP-1100A1(2/3/4/5)	1100	250	11	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×38.5	22.1/24.3	1960

Pervious: GPCS-XXXA Next:GPDP-XXXB
