Your Location: Home > Products > Garden PumpsProname:GPCS-XXXA

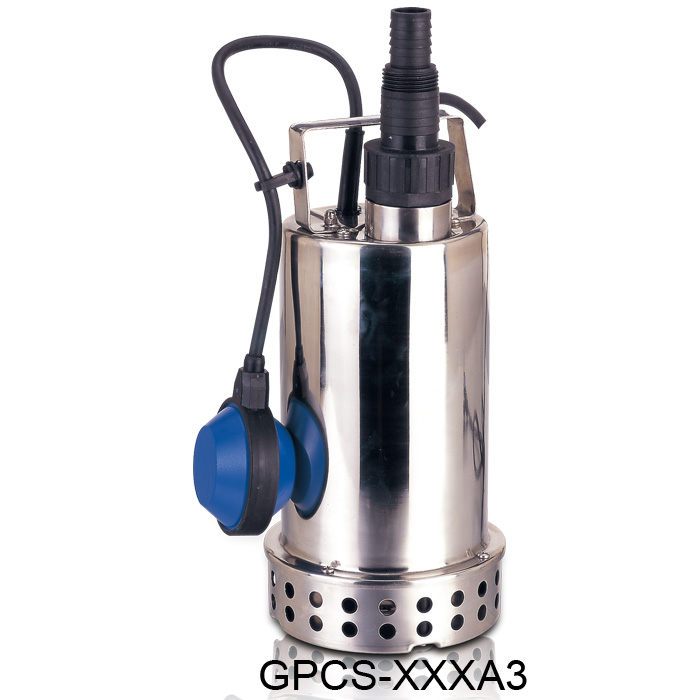

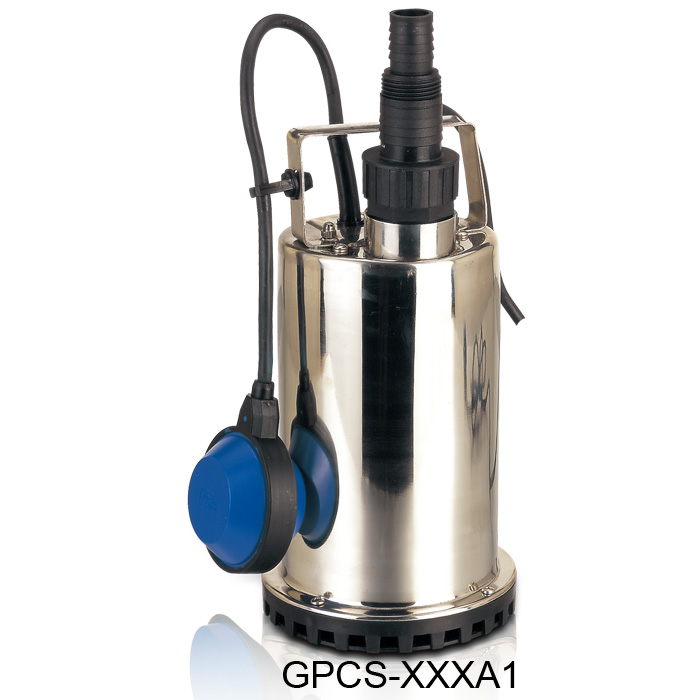

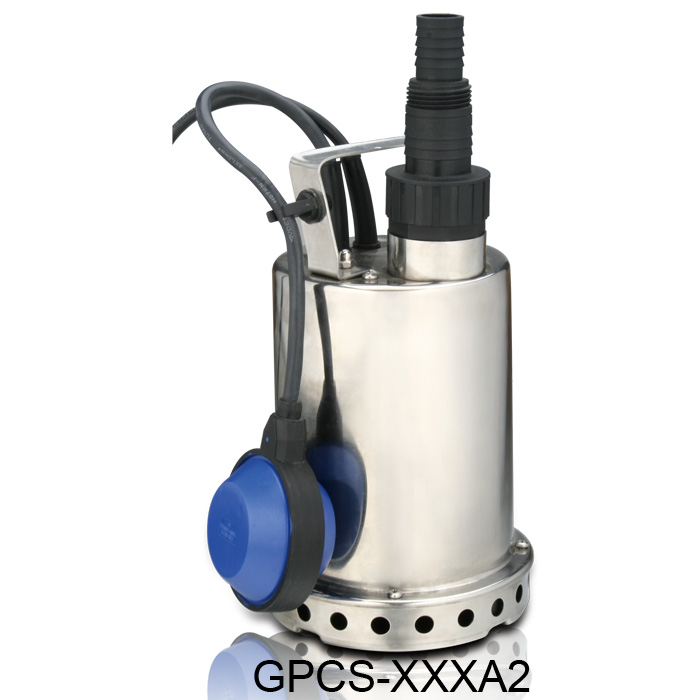

Clean Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system
Compare with normal floating switch, it can be used in much smaller space and will not be blocked
Stainless steel motor shaft
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 5mm

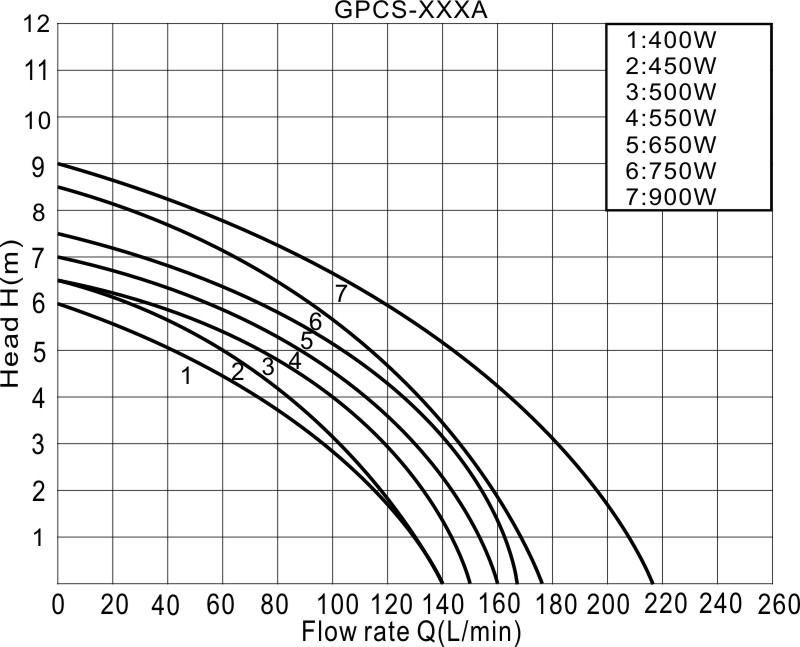

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPCS-400A1(2/3)	400	140	6	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×33	19.2/21	2292
GPCS-450A1(2/3)	450	140	6.5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×33	19.4/21.2	2292
GPCS-500A1(2/3)	500	150	6.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	21.5/23.3	2292
GPCS-550A1(2/3)	550	160	7	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	21.6/23.4	2292
GPCS-650A1(2/3)	650	166	7.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	21.7/23.5	2292
GPCS-750A1(2/3)	750	175	8.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	21.9/23.7	2292
GPCS-900A1(2/3)	900	216	9	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	22.2/24.2	2040
