Your Location: Home > Products > Garden PumpsProname:GPDP-XXXF

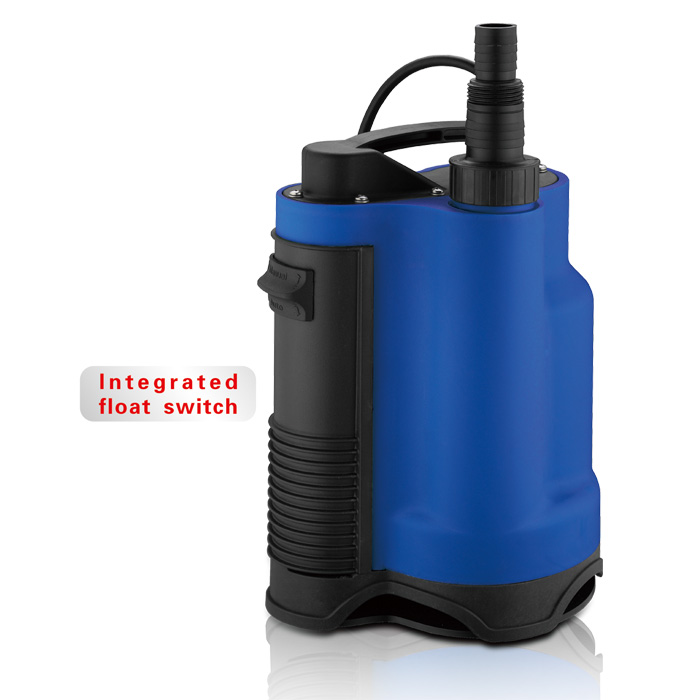

Dirty Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system
Compare with normal floating switch, it can be used in much smaller space and will not be blocked
Stainless steel motor shaft
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 25mm

Model	Power (W)	Max.flow (L/H)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPDP-400F	400	125	5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×36	18.8/21.2	1672
GPDP-550F	550	175	7	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×36	20.7/23.1	1672
GPDP-750F	750	216	9	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×38.5	21.4/23.8	1672
