Your Location: Home > Products > Garden PumpsProname:GPDP-XXXG
I want to enquire
Features

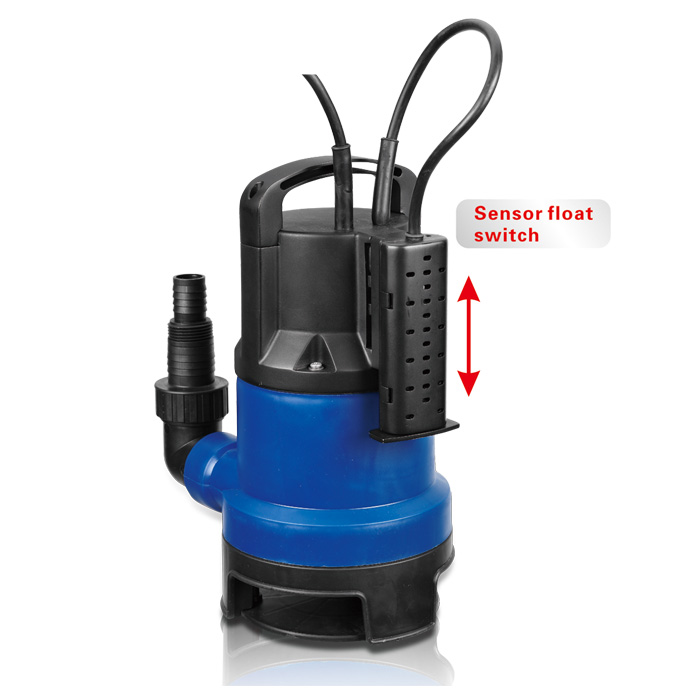

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system
Compare with normal floating switch, it can be used in much smaller space and will not be blocked
Stainless steel motor shaft
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 25mm

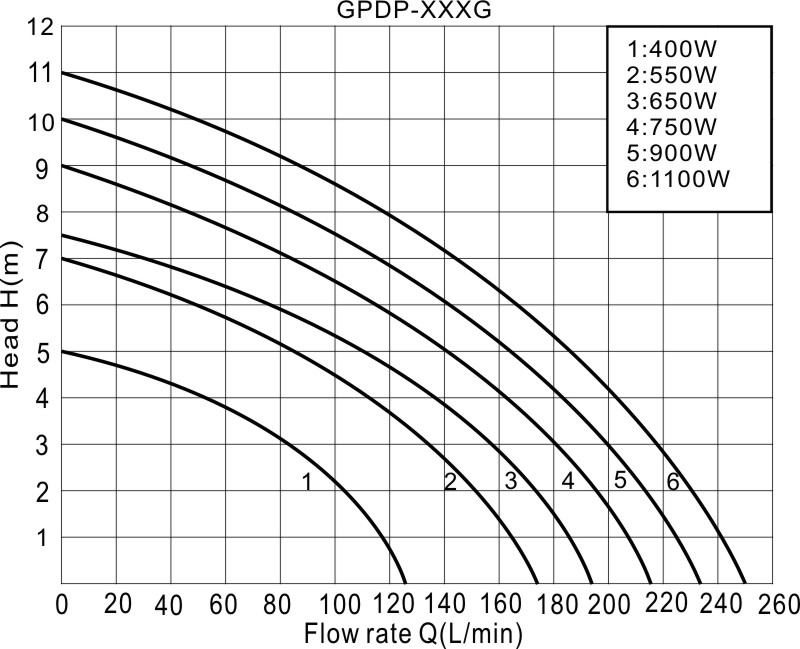

Model

Power

(W)

Max.flow

(L/H)

Max.head
(m)
Dia. of pipe Cable

Box (4 in one box)

size (cm)

N.W./G.W.
(kg)
PCS/TEU
GPDP-400G 400 125 5 1", 1¼", 1½" H05RN-F 3G0.75MM²×10m 46×34×36 16.2/18.2 2040
GPDP-550G 550 175 7 1", 1¼", 1½" H05RN-F 3G1.0MM²×10m 46×34×36 20.3/22.3 2040
GPDP-650G 650 192 7.5 1", 1¼", 1½" H05RN-F 3G1.0MM²×10m 46×34×36 20.4/22.4 2040
GPDP-750G 750 216 9 1", 1¼", 1½" H05RN-F 3G1.0MM²×10m 46×34×38.5 20.6/22.8 1960
GPDP-900G 900 233 10 1", 1¼", 1½" H05RN-F 3G1.0MM²×10m 46×34×38.5 21.8/24 1960
GPDP-1100G 1100 250 11 1", 1¼", 1½" H05RN-F 3G1.0MM²×10m 46×34×38.5 22.1/24.3 1960

Pervious: GPDP-XXXF       Next:GPDS-XXXA
