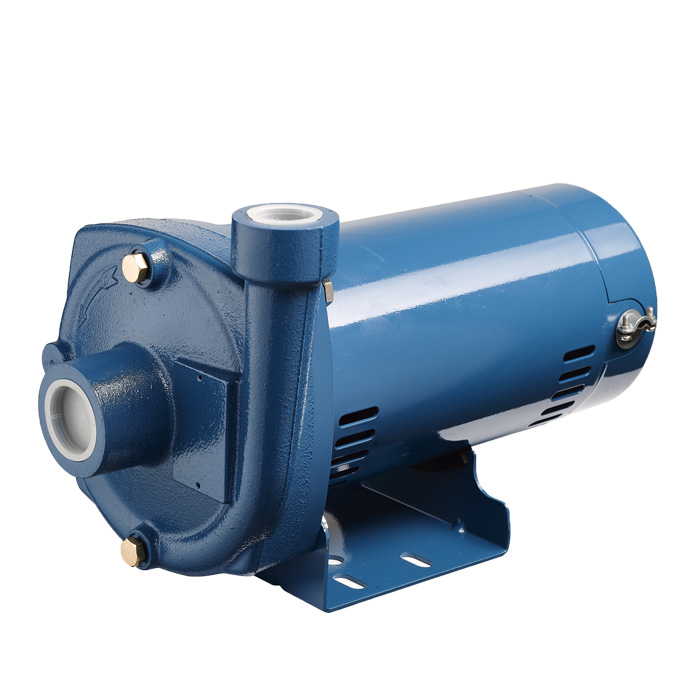

Transfer Pump

Features

Three-way, cast iron volute can be rotated for ease of installation
Modified PPO impeller with stainless steel hub for efficiency and performance
Powered by high quality, industry proven, indoor/outdoor square flange motors
Built-in drain plug for easy winterizing and servicing
Can be mounted in a vertical or horizontal position.
Handles water temperatures up to 60 °C

Pump

pump body: Cast iron
Impeller: PPO
Shaft: AISI 304

Motor

C&U bearing
Motor with cooper winding
Built-in thermal protected for single phase motor
Insulation class: F
Protection class: IPX4

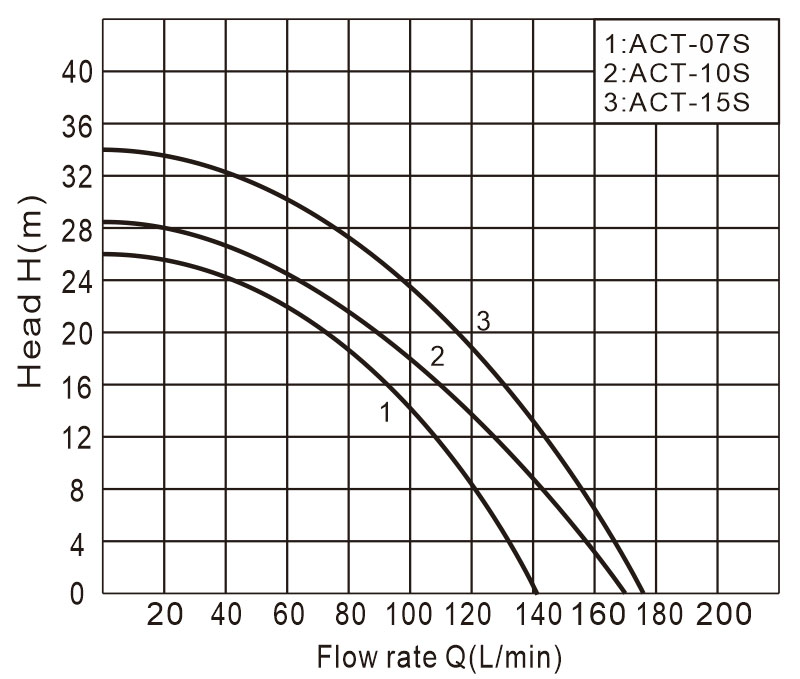

Model Power
(HP) 		Max.flow
(GPH) 		Max.head
(ft) 		Max.suct
(ft) 		Intlet/Outlet G.W.
(kg) 		Packing size
(mm) 		QTY/20'
(PCS)
ACT-07S 0.75 2200 85 26 NPT1½"×NPT1" 16 430×240×230 1180
ACT-10S 1 2600 90 26 NPT1½"×NPT1" 17 430×240×250 1085
ACT-15S 1.5 2700 115 26 NPT1½"×NPT1" 19 430×240×260 1040
