Your Location: Home > Products > Circulating Pumps > CPC-AProname:CPC-4A

CPC Three-speed Circulator Pumps

Application

1. For clean liquid without abrasives which are non-aggressive to the pump material.
2. Civilian and industrial heating systems.
3. Cooling and air-conditioning systems.
4.Liquid temperature from 2℃ to + 110℃.
5.Ambient temperature up to 40℃.
6. Max.working pressure: 10bar.

Motor

Three adjustable speeds
Enclosure class IP 44
Insulation class H

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	Size(mm)

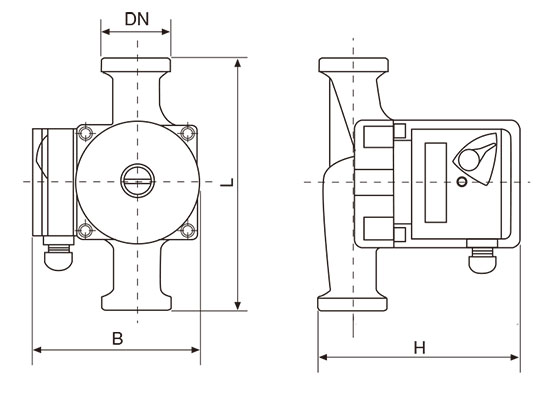

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	L	DN	H	B

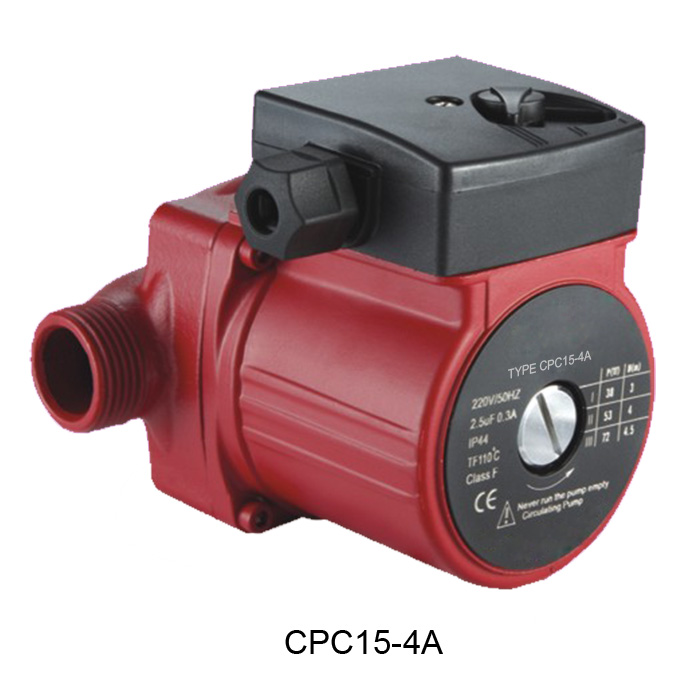

CPC15-4A	72/53/38	42/34/23	4.5/4/3	1"	2.2	130	32.5	133	127

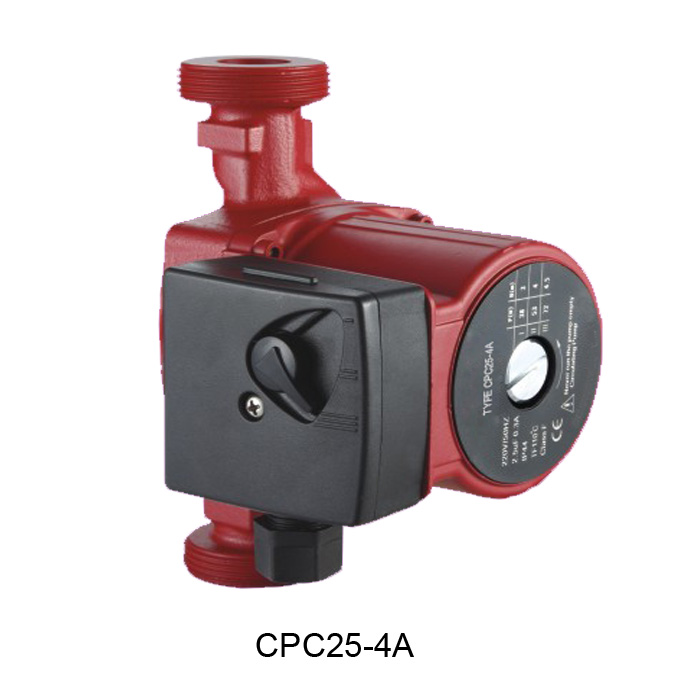

CPC25-4A	72/53/38	48/36/22	4.5/4/3	1½"	2.4	130/180	47.5	129	126

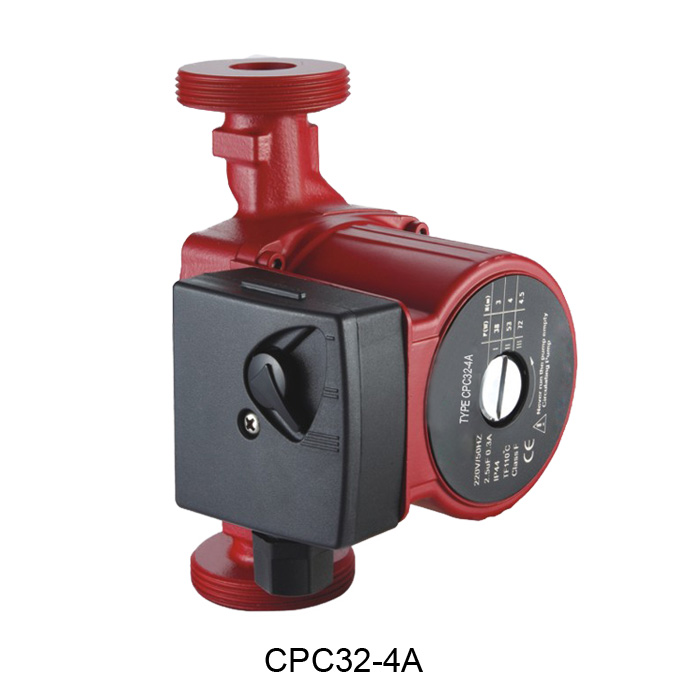

CPC32-4A	72/53/38	48/36/22	4.5/4/3	2"	2.4	180	59.5	132	126
