CPC Three-speed Circulator Pumps

Application

1. For clean liquid without abrasives which are non-aggressive to the pump material.
2. Civilian and industrial heating systems.
3. Cooling and air-conditioning systems.
4.Liquid temperature from 2℃ to + 110℃.
5.Ambient temperature up to 40℃.
6.Max.woring pressure:10 bar.

Motor

Three adjustable speeds
Enclosure class IP 44
Insulation class H

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	Size(mm)

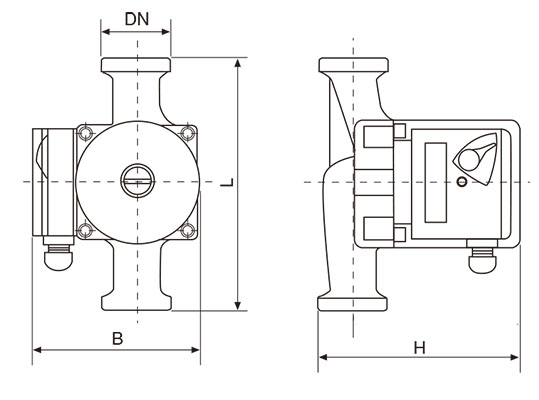

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	L	DN	H	B

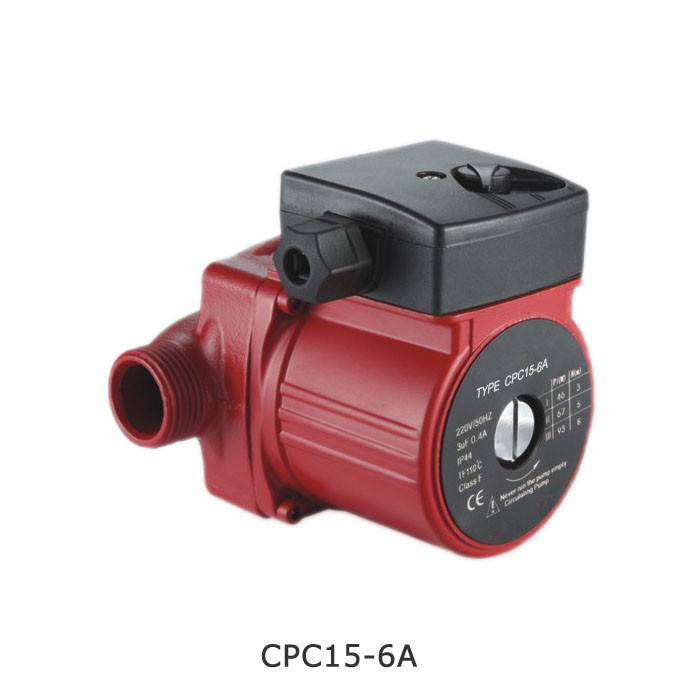

CPC15-6A	93/67/46	48/35/21	6/5/3	1"	2.2	130	32.5	133	127

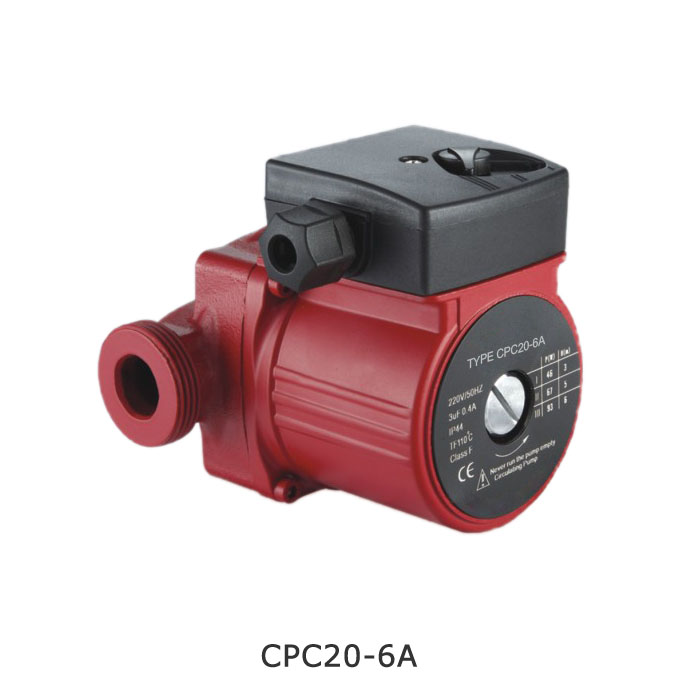

CPC20-6A	93/67/46	55/38/22	6/5/3	1¼"	2.3	130	40.5	122	125

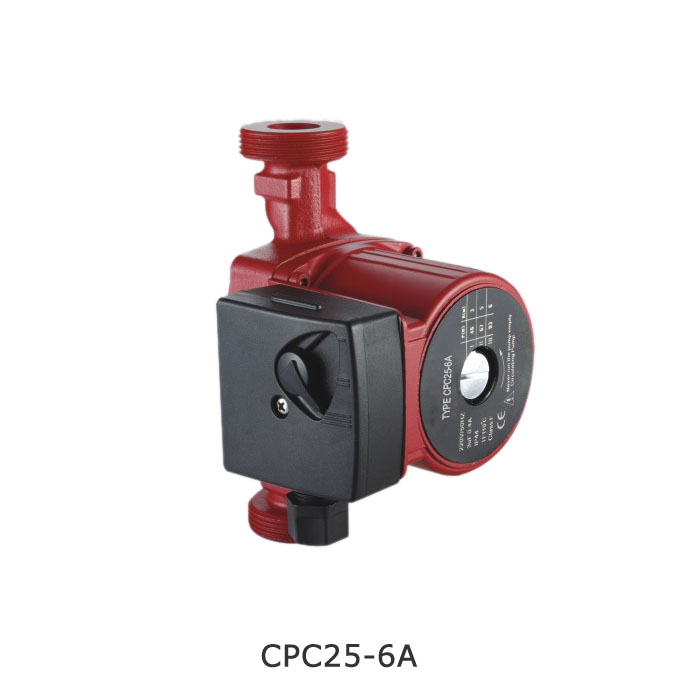

CPC25-6A	93/67/46	55/38/22	6/5/3	1½"	2.4	130/180	47.5	125	126

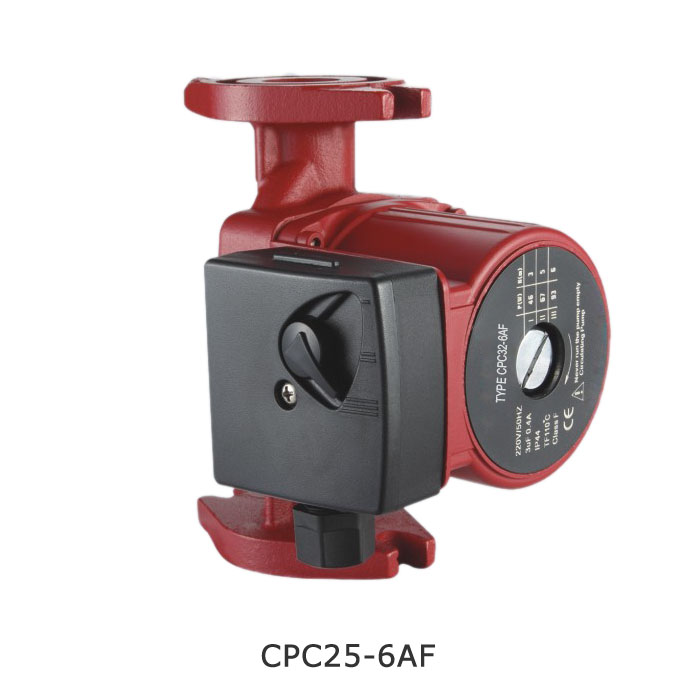

CPC25-6AF	93/67/46	55/38/22	6/5/3	1½"	2.6	166	66	154	114

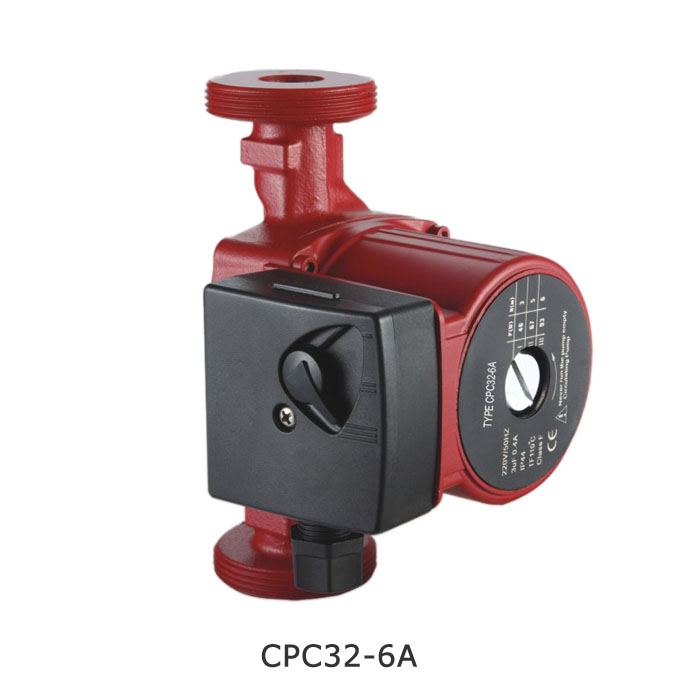

CPC32-6A	93/67/46	55/38/22	6/5/3	2"	2.5	180	59.5	130	126
