Your Location: Home > Products > Circulating Pumps > CPC-AProname:CPC-15A
I want to enquire

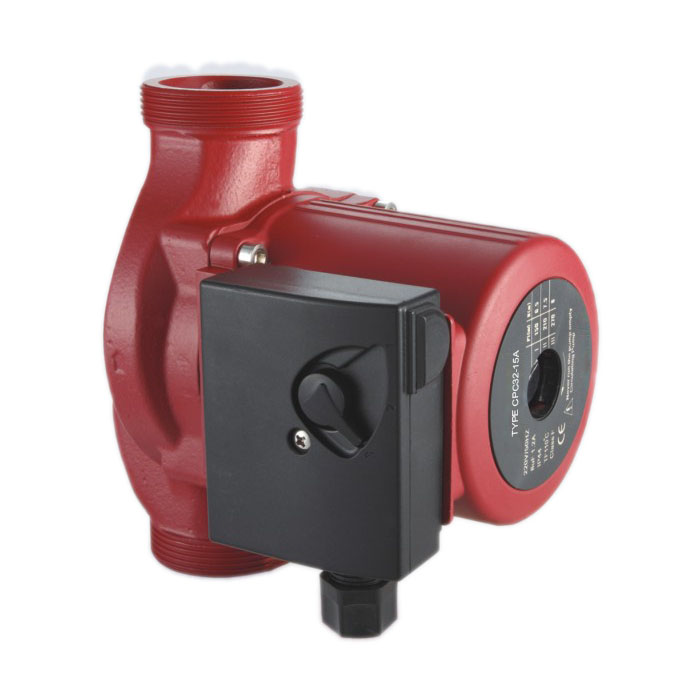

CPC Three-speed Circulator Pumps

Application

1. For clean liquid without abrasives which are non-aggressive to the pump material.
2. Civilian and industrial heating systems.
3. Cooling and air-conditioning systems.
4.Liquid temperature from  2℃ to + 110℃.
5.Ambient temperature up to 40℃.
6.Max.woring pressure:10 bar.
Motor

Three adjustable speeds
Enclosure class IP 44
Insulation class H

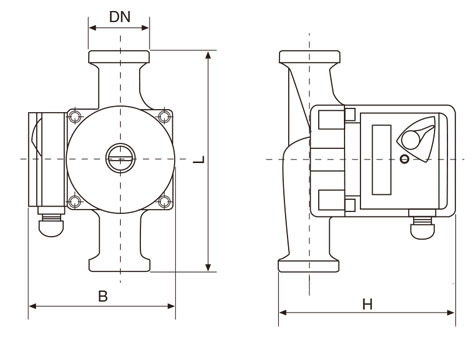

Model Power(W) Max.Flow(L/min) Max.Head(m) Inlet/Outlet N.W(kg) Size(mm)
L DN H B

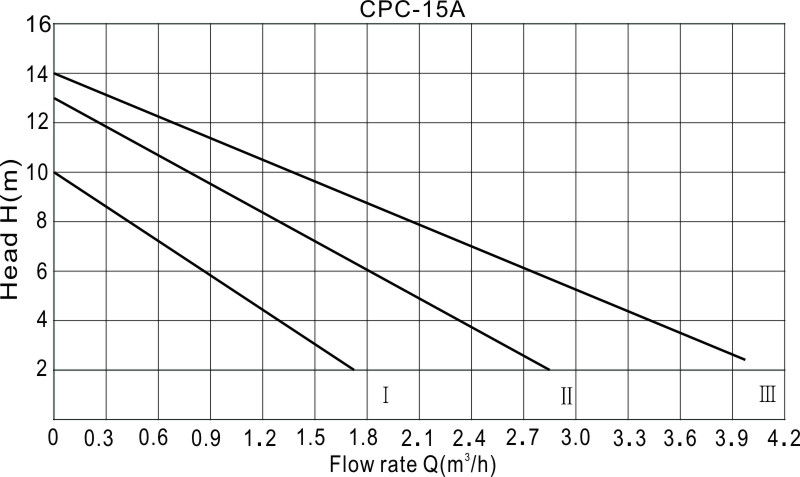

CPC25-15A 270/210/150 68/46/28 14/13/10 1½" 4.9 180 47.5 160 149

Pervious: CPC-12A        Next: no products
