Your Location: Home > Products > Circulating Pumps > CPC-AProname:CPC-12A

CPC Three-speed Circulator Pumps

Application

1. For clean liquid without abrasives which are non-aggressive to the pump material.
2. Civilian and industrial heating systems.
3. Cooling and air-conditioning systems.
4.Liquid temperature from 2℃ to + 110℃.
5.Ambient temperature up to 40℃.
6.Max.woring pressure:10 bar.

Motor

Three adjustable speeds
Enclosure class IP 44
Insulation class H

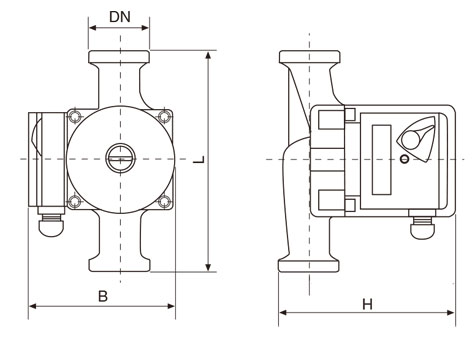

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	Size(mm)
Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	L	DN	H	B

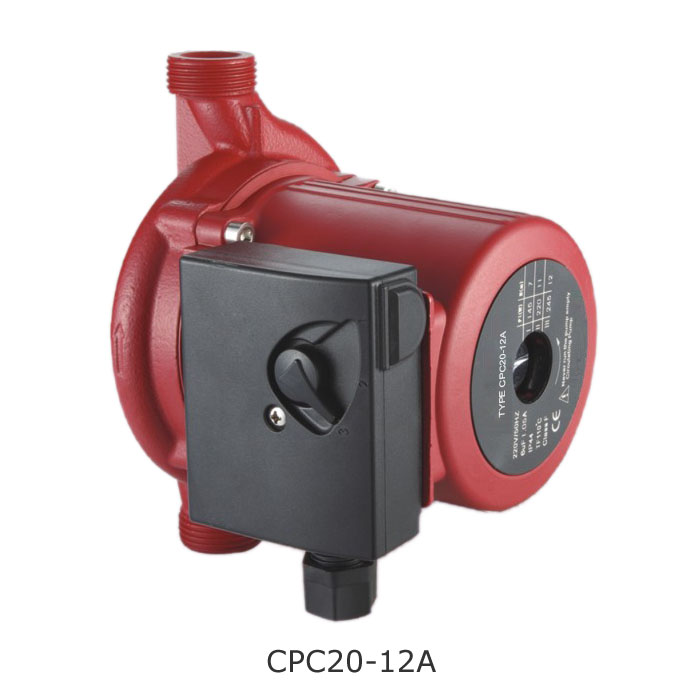

CPC20-12A	245/220/145	52/32/22	12/11/7	1"	4.2	180	32.5	152	150

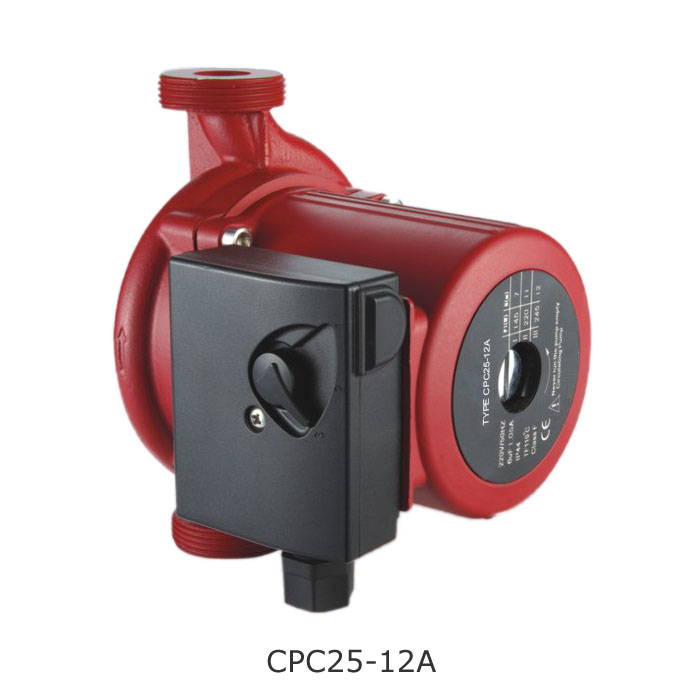

CPC25-12A	245/220/145	52/32/22	12/11/7	1½"	4.5	180	47.5	160	149

Pervious: CPC-8A Next:CPC-15A
