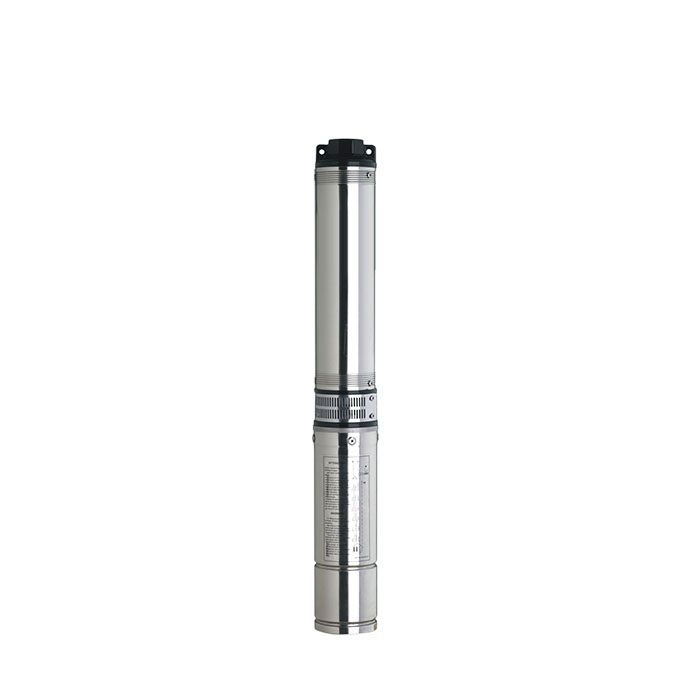

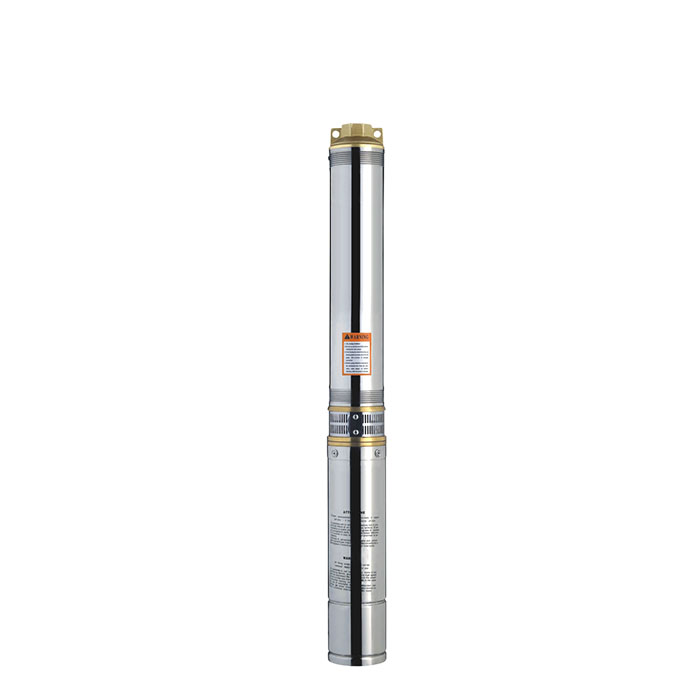

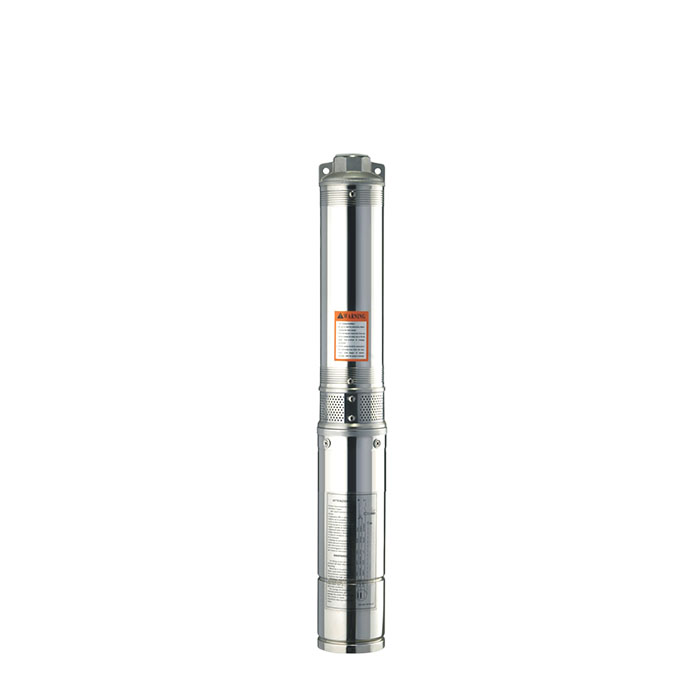

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

MODEL POWER Q(㎥/h) 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8
220V/240V 380V/415V KW HP Q(L/min) 0 10 20 30 40 50 60 70 80
4BPM3/5-H 4BPT3/5-H 0.37 0.5 H(m) 41 38 36 35 32 29 26 22 16
4BPM3/8-H 4BPT3/8-H 0.55 0.75 65 62 58 56 51 47 42 35 26
4BPM3/10-H 4BPT3/10-H 0.75 1 82 78 72 70 64 59 52 44 32
4BPM3/14-H 4BPT3/14-H 1.1 1.5 114 109 101 98 89 82 73 61 45
4BPM3/18-H 4BPT3/18-H 1.5 2 147 134 130 126 115 105 94 79 58
4BPM3/26-H 4BPT3/26-H 2.2 3 212 202 188 182 166 152 135 114 83
4BPT3/33-H 3 4 269 257 238 231 211 193 172 145 105
4BPT3/44-H 4 5.5 359 342 318 308 281 258 229 193 141
