Your Location: Home > Products > Submersible Borehole PumpsProname:4BP4-H
I want to enquire

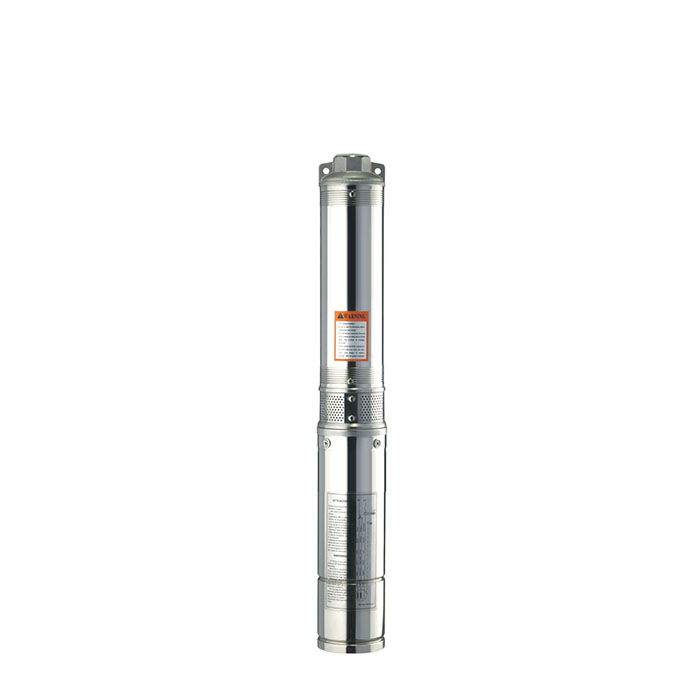

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

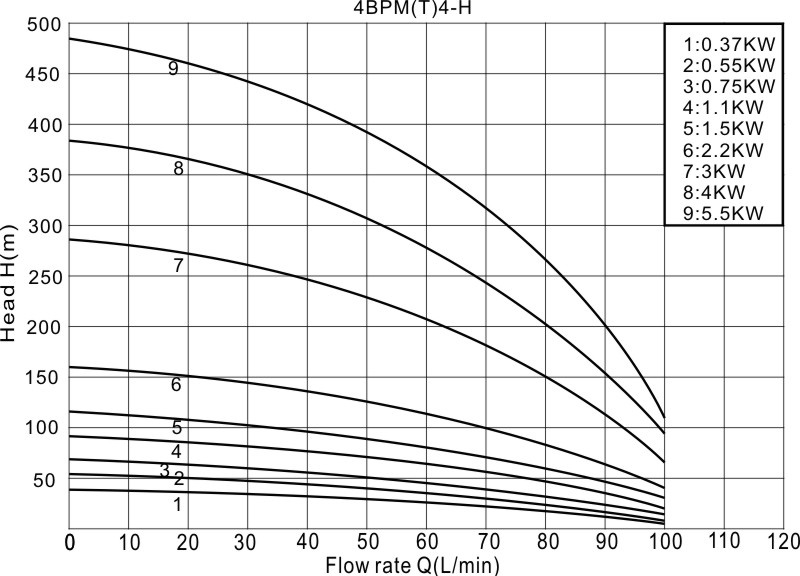

MODEL POWER Q(㎥/h) 0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6
220V/240V 380V/415V KW HP Q(L/min) 0 10 20 30 40 50 60 70 80 90 100
4BPM4/5-H 4BPT4/5-H 0.37 0.5 H(m) 37 35 34 33 32 30 27 23 19 14 9
4BPM4/7-H 4BPT4/7-H 0.55 0.75 52 49 48 46 45 42 38 33 27 20 12
4BPM4/9-H 4BPT4/9-H 0.75 1 67 63 62 60 57 54 49 43 34 25 16
4BPM4/12-H 4BPT4/12-H 1.1 1.5 89 85 82 80 76 72 66 57 46 34 21
4BPM4/16-H 4BPT4/16-H 1.5 2 118 113 110 106 101 96 87 76 61 45 28
4BPM4/22-H 4BPT4/22-H 2.2 3 163 155 151 146 140 132 120 104 84 62 38
4BPT4/38-H 3 4 281 268 261 252 241 228 207 180 145 107 66
4BPT4/51-H 4 5.5 378 359 350 338 323 306 278 241 195 144 88
4BPT4/65-H 5.5 7.5 481 458 446 431 412 390 355 308 248 183 112

Pervious: 4BP3-H       Next:4BP6-H
