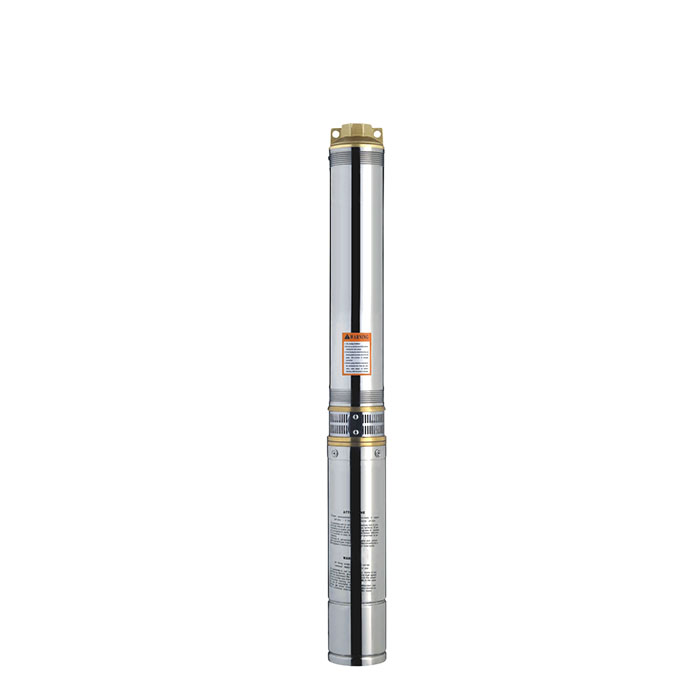

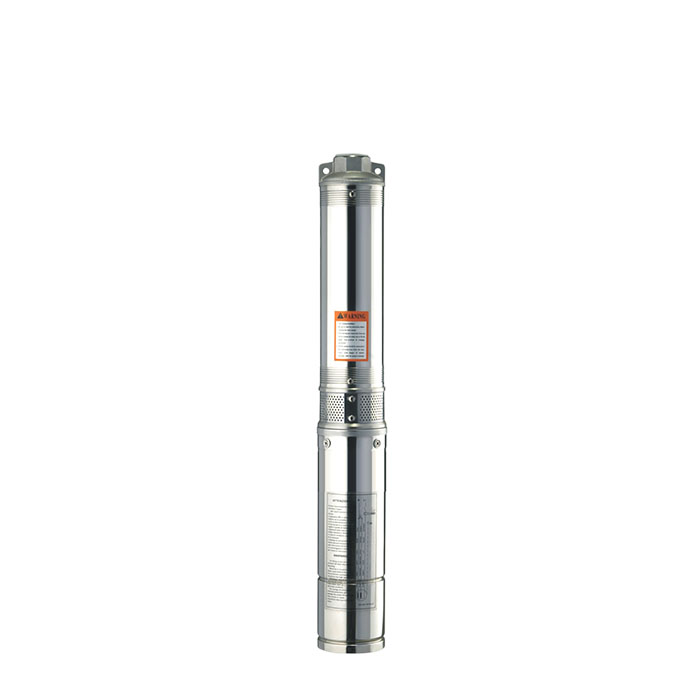

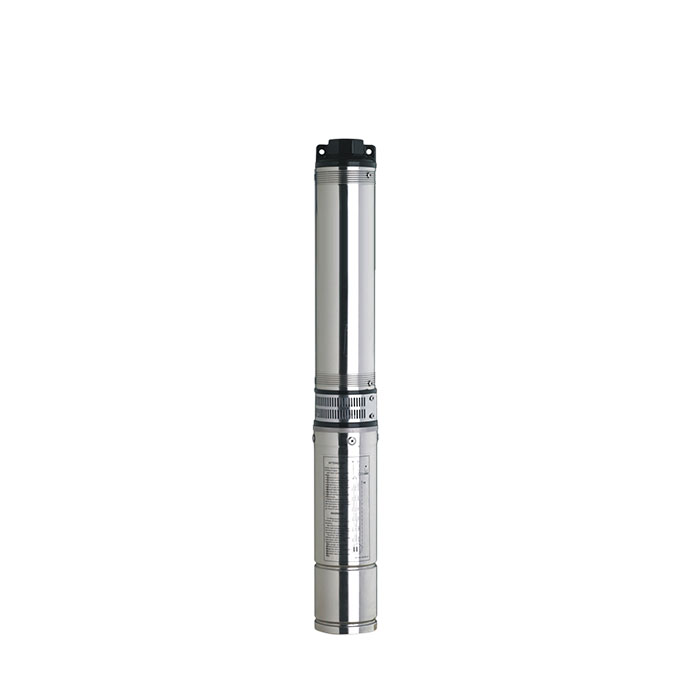

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

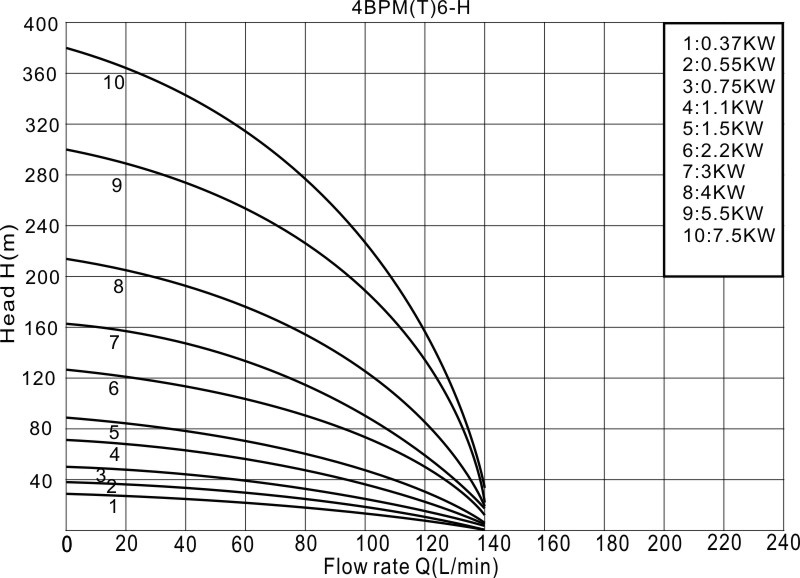

MODEL		POWER		Q(㎥/h）	0	1.2	2.4	3.6	4.8	6	7.2	8.4
220V/240V	380V/415V	KW	HP	Q(L/min）	0	20	40	60	80	100	120	140
4BPM6/4-H	4BPT6/4-H	0.37	0.5	H(m)	30	29	28	27	23	19	12	2
4BPM6/5-H	4BPT6/5-H	0.55	0.75		37	36	35	34	29	23	15	3
4BPM6/7-H	4BPT6/7-H	0.75	1		52	50	49	47	41	33	21	4
4BPM6/9-H	4BPT6/9-H	1.1	1.5		67	66	63	60	53	42	27	5
4BPM6/12-H	4BPT6/12-H	1.5	2		89	87	85	80	70	56	36	7
4BPM6/17-H	4BPT6/17-H	2.2	3		126	124	120	114	97	79	51	10
	4BPT6/22-H	3	4		163	160	155	147	128	102	66	13
	4BPT6/29-H	4	5.5		215	211	204	194	168	135	87	17
	4BPT6/40-H	5.5	7.5		297	291	282	268	232	186	120	24
	4BPT6/50-H	7.5	10		371	364	353	335	290	233	150	30
