Your Location: Home > Products > Submersible Borehole PumpsProname:4BP8-H
I want to enquire

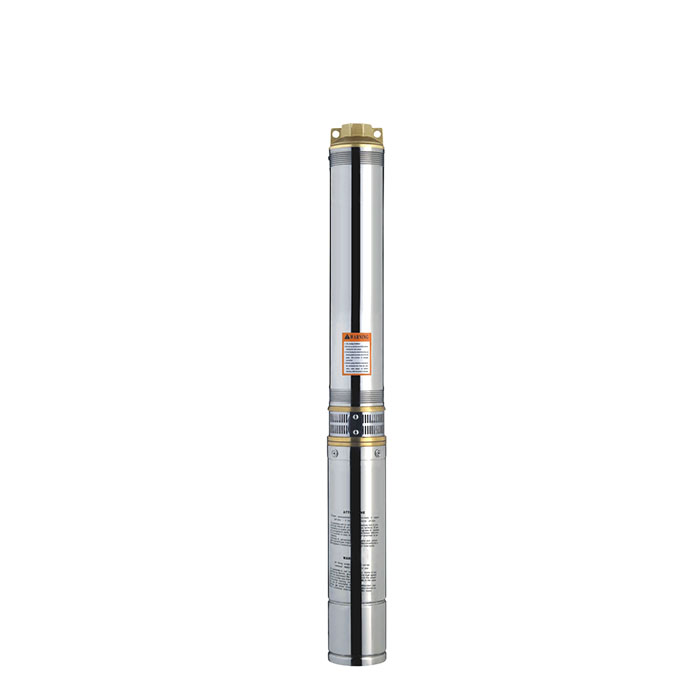

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content: 0.25%.
Maximum immersion: 80m.
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415/50Hz
Single-phase: 220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

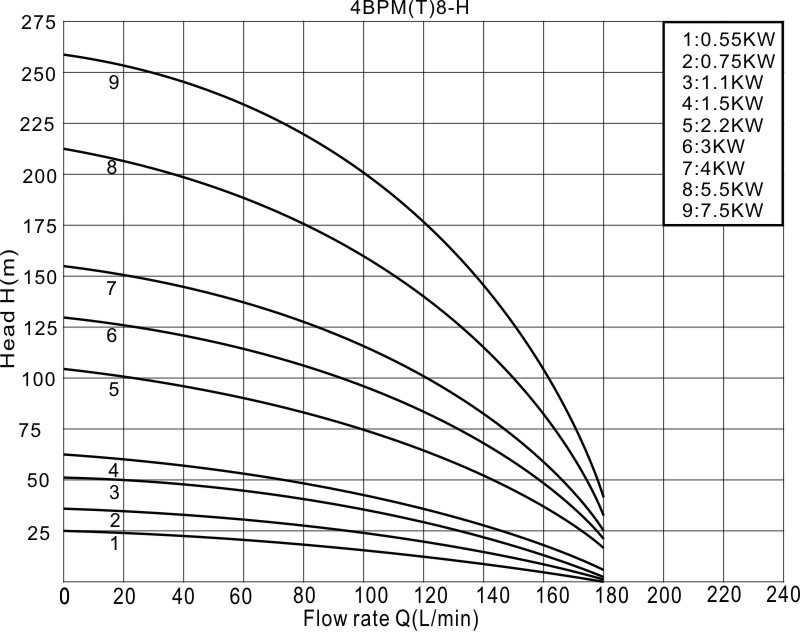

MODEL POWER Q(㎥/h) 0 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6 10.8
220V/240V 380V/415V KW HP Q(L/min) 0 20 40 60 80 100 120 140 160 180
4BPM8/4-H 4BPT8/4-H 0.55 0.75 H(m) 26 23 23 21 20 19 17 13 9 4
4BPM8/6-H 4BPT8/6-H 0.75 1 39 35 34 32 30 28 25 20 14 6
4BPM8/8-H 4BPT8/8-H 1.1 1.5 52 47 45 43 41 37 33 27 19 8
4BPM8/10-H 4BPT8/10-H 1.5 2 66 58 57 53 51 47 42 33 23 10
4BPM8/16-H 4BPT8/16-H 2.2 3 105 93 91 85 81 75 67 53 37 16
4BPT8/20-H 3 4 131 117 113 107 102 93 83 67 47 20
4BPT8/24-H 4 5.5 157 140 136 128 122 112 100 80 56 24
4BPT8/32-H 5.5 7.5 210 187 181 171 163 149 133 107 75 32
4BPT8/40-H 7.5 10 262 233 227 213 203 187 167 133 93 40
