Your Location: Home > Products > Garden PumpsProname:GPCP-XXXE

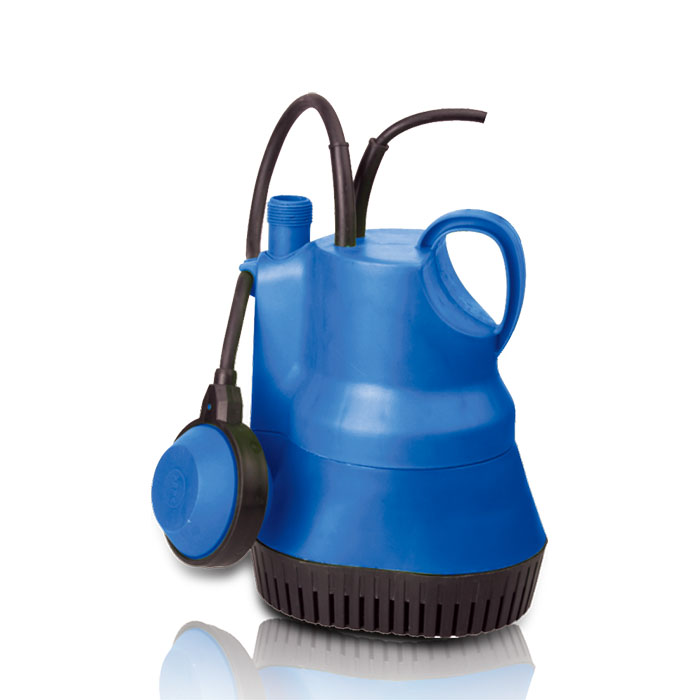

Rain Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system.
Compare with normal floating switch, it can be used in much smaller space and will not be blocked.
Stainless steel motor shaft.
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 5mm

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPCP200E	200	33	7.5	3/4"	H05RN-F 3G0.75MM²×10m	46×38.5×33	15.3/17.5	1960
GPCP250E	250	33	9	3/4"	H05RN-F 3G0.75MM²×10m	46×38.5×33	15.4/17.6	1960
GPCP400E	400	42	12	3/4"	H05RN-F 3G0.75MM²×10m	46×38.5×33	16.2/18.4	1960
GPCP550E	550	50	15	3/4"	H05RN-F 3G1.0MM²×10m	46×38.5×33	20.4/22.6	1960

Pervious: GPCP-XXXD Next:GPCP-XXXF
