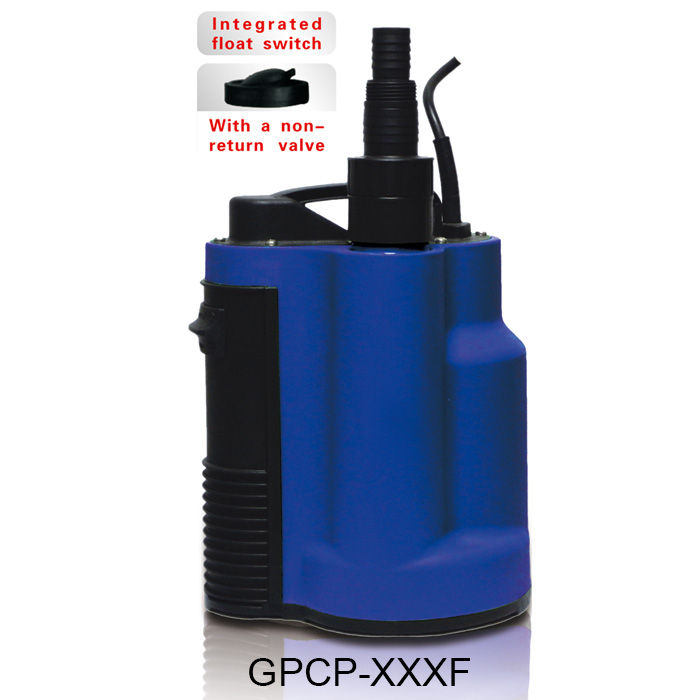

Your Location: Home > Products > Garden PumpsProname:GPCP-XXXF

Clean Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system.
Compare with normal floating switch, it can be used in much smaller space and will not be blocked.
Stainless steel motor shaft.
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 5mm

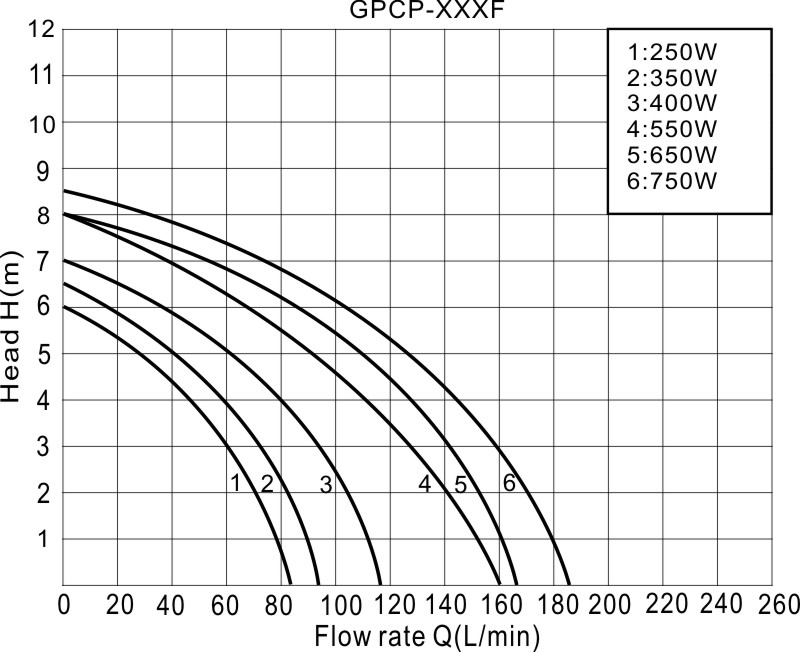

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPCP-250F	250	83	6	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×38×36	17.8/20.1	1800
GPCP-350F	350	92	6.5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×38×36	18/20.3	1800
GPCP-400F	400	116	7	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×38×36	18.2/20.5	1800
GPCP-550F	550	160	8	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×38×36	20.1/22.4	1800
GPCP-650F	650	166	8	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×38×36	20.2/22.5	1800
GPCP-750F	750	183	8.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×38×36	20.5/22.8	1800

Pervious: GPCP-XXXE Next:GPCP-XXXG
