Your Location: Home > Products > Garden PumpsProname:GPCP-XXXG

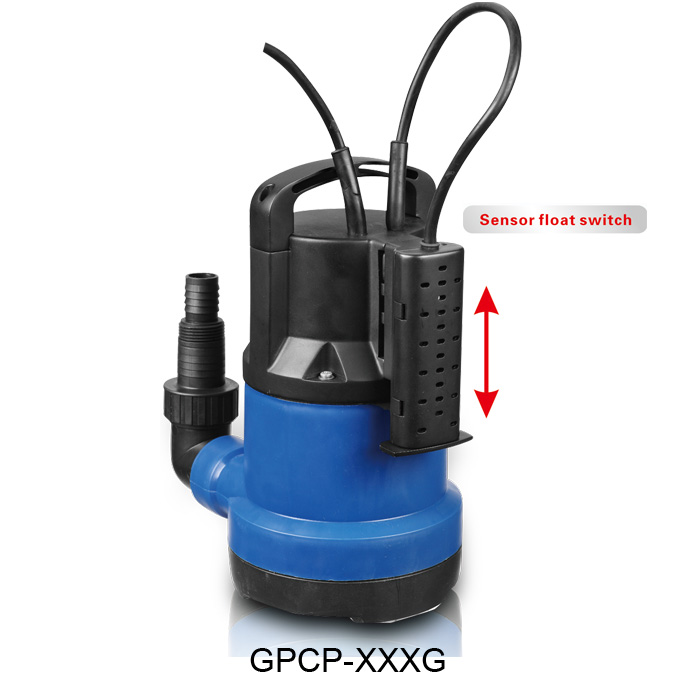

Clean Water Pump

Features

The pump can be turned on/off automatically and accurately according to water level via a special built-in electonic system.
Compare with normal floating switch, it can be used in much smaller space and will not be blocked.
Stainless steel motor shaft.
Construction and safety standards in compliance with EN60335-2-4li and EN60335-li

Main Specifications

Liquid temperature up to 35℃
Maximum ambient temperature 40℃
Protection class IPX8
Maximum particle size: 5mm

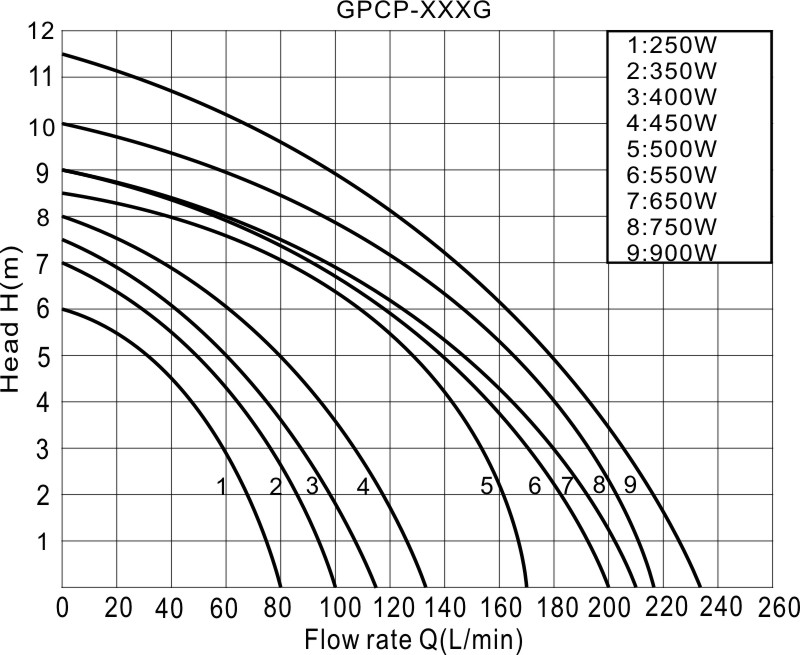

Model	Power (W)	Max.flow (L/min)	Max.head (m)	Dia. of pipe	Cable	Box (4 in one box) size (cm)	N.W./G.W. (kg)	PCS/TEU
GPCP-250G	250	80	6	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×33	14.4/16.2	2292
GPCP-350G	350	100	7	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×33	15.2/17	2292
GPCP-400G	400	116	7.5	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×33	15.8/17.6	2292
GPCP-450G	450	133	8	1", 1¼", 1½"	H05RN-F 3G0.75MM²×10m	46×34×33	15.9/17.7	2292
GPCP-500G	500	166	8.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	19.5/21.3	2292
GPCP-550G	550	200	9	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	19.8/21.6	2292
GPCP-650G	650	208	9	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	19.9/21.7	2292
GPCP-750G	750	216	10	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	20.5/22.5	2040
GPCP-900G	900	233	11.5	1", 1¼", 1½"	H05RN-F 3G1.0MM²×10m	46×34×33	22/24	2040
