Your Location: Home > Products > Circulating Pumps > CPC-AProname:CPC-7A

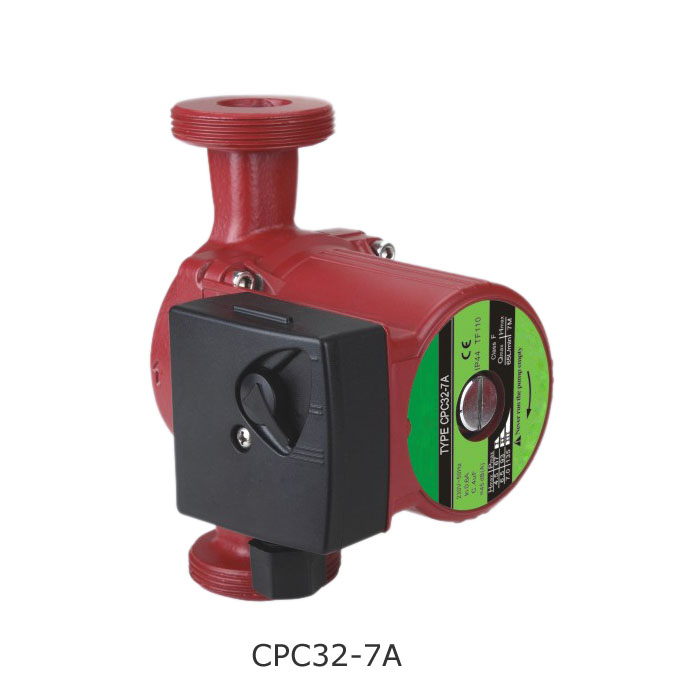

CPC Three-speed Circulator Pumps

Application

1. For clean liquid without abrasives which are non-aggressive to the pump material.
2. Civilian and industrial heating systems.
3. Cooling and air-conditioning systems.
4.Liquid temperature from 2℃ to + 110℃.
5.Ambient temperature up to 40℃.
6.Max.woring pressure:10 bar.

Motor

Three adjustable speeds
Enclosure class IP 44
Insulation class H

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	Size(mm)

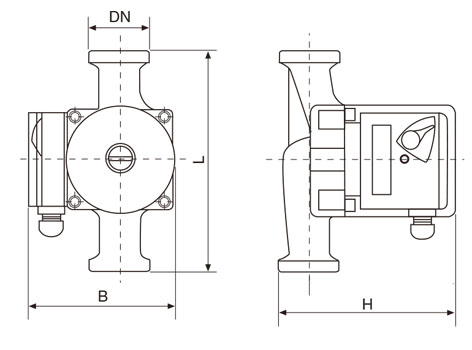

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	L	DN	H	B
CPC25-7A	135/93/67	65/44/22	7/6.5/4.5	1½"	2.8	180	47.5	145	122.5
CPC32-7A	135/93/67	65/44/22	7/6.5/4.5	2"	2.8	180	59.5	148	124
