CPC Three-speed Circulator Pumps

Application

1. For clean liquid without abrasives which are non-aggressive to the pump material.
2. Civilian and industrial heating systems.
3. Cooling and air-conditioning systems.
4.Liquid temperature from 2℃ to + 110℃.
5.Ambient temperature up to 40℃.
6.Max.woring pressure:10 bar.

Motor

Three adjustable speeds
Enclosure class IP 44
Insulation class H

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	Size(mm)

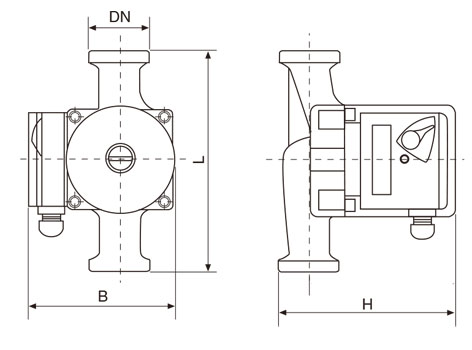

Model	Power(W)	Max.Flow(L/min)	Max.Head(m)	Inlet/Outlet	N.W(kg)	L	DN	H	B

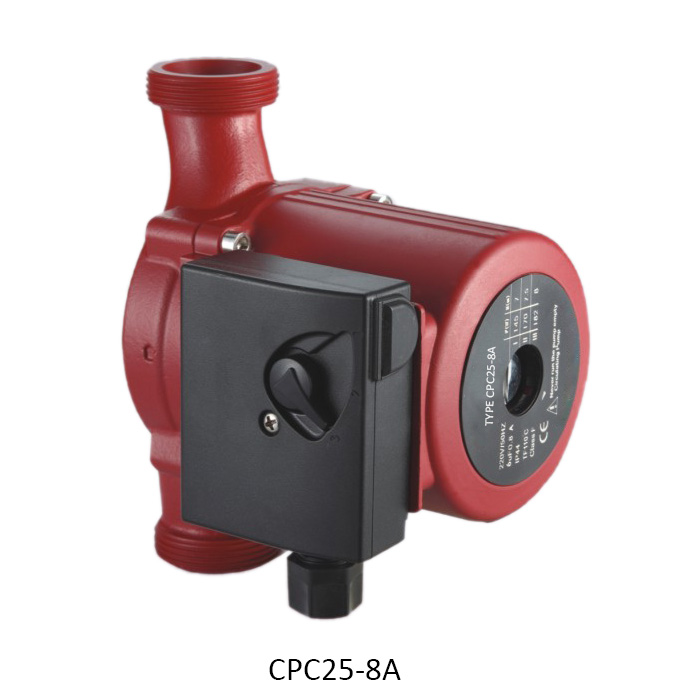

CPC25-8A	182/170/145	115/95/45	8/7.5/7	1½"	3.8	180	47.5	155	134.5

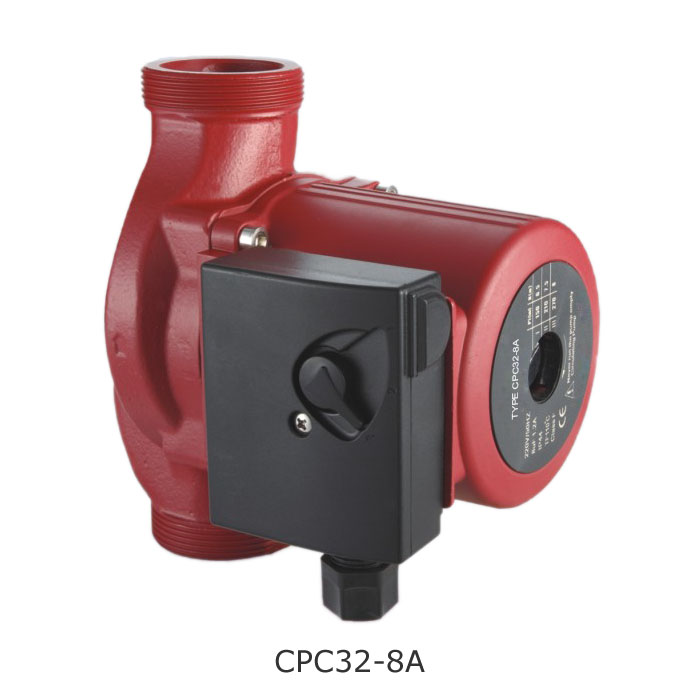

CPC32-8A	270/210/150	160/103/43	8/7.5/6.5	2"	5	190	59.5	172	137
